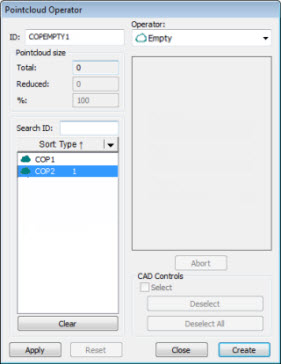

Pointcloud Operator dialog box - EMPTY Operator
This operation deletes all of the data contained in a selected COP or operator command. When this command is executed, PC-DMIS removes the data of the associated COP.
To apply the EMPTY Pointcloud operation to a pointcloud:
If you have more than one pointcloud defined, position your cursor at the location of the pointcloud you want to empty. If you only have one pointcloud defined, place the cursor at or above it.
Click Empty Pointcloud
(
)
on the Pointcloud toolbar, or select Operation | Pointcloud | Empty.
Click Create to insert a COP/OPER,EMPTY command into the Edit window.
For example:
COPEMPTY2 =COP/OPER,EMPTY,SIZE=0
REF,COP2,,
Once this command has been applied to a COP, there is no way to restore COP data that was removed. Undo does not restore this data.
