Step 3: Re-Measure the Datum Features

Since the approximate location of the part is known, the Datum Features can be re-measured under computer control with different Vision parameters to more accurately define them.

If you are using a DCC machine, select DCC Mode from the Probe Mode toolbar. Otherwise, you can use AutoShutter to measure using a manual machine.

To re-measure the arc datum feature:

  1. From the Auto Feature toolbar, click Circle to open the Auto Feature (circle) dialog box.

  2. Select the Vision tab.

  3. Select the Magnification tab , and adjust the magnification so it is decreased to the minimum setting (zoomed out).

  4. Move the machine so the lower edge of the Arc (Datum B) is within the Field of View (FOV).

  5. Adjust the magnification to 75% of the maximum zoomed in value.

  6. Select the Illumination tab and set the Top Light to 0% (Off) and the Bottom Light to 35%.

  7. Focus Z if necessary.

  8. Pick the first anchor point on the arc's edge using the pointer.

  1. Move the machine so the middle of the Arc (Datum B) is within the FOV.

  1. Move the machine so the upper edge of the Arc (Datum B) is within the FOV. The target is displayed.

  1. Change the Start Angle to 5 and the End angle to 85.

  2. Edit the location parameters to exact values: X=0, Y=0, D=16

  3. From the Hit Targets tab , under Density, double-click Normal, and select High from the drop-down list to change the density. Collecting a high density of points on this arc improves its accuracy.

  4. Double-click on Strength box and type a value of 6.

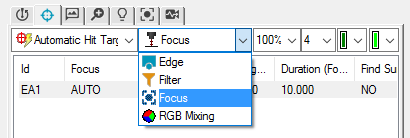

  5. Edit the Focus parameter set to automatically re-focus prior to measuring the circle feature. First, select the Focus from the drop-down list as show below.

  1. Change the Focus parameter set as follows: Focus = Yes, Range = 5, Duration = 4

  2. From the Auto Feature dialog box, rename the default Circle Auto Feature to DATUM B.

  3. Click Test to test feature measurement.

  4. Click Create and then Close.

To remeasure the line datum feature:

  1. From the Auto Feature toolbar, click Line to open the Auto Feature (line) dialog box.

  2. Move the machine so that the left end of the Front Edge (Datum C) is within the FOV.

  3. If necessary, adjust the Z axis to regain focus.

  4. Pick the first anchor point on the left front edge using the mouse.

  1. Move the machine so that the right end (just before the "V") of the Front Edge (Datum C) is within the FOV. Pick the second anchor point using the mouse. The target is displayed.

  1. From the Auto Feature dialog box, rename the default Line Auto Feature to DATUM C.

  2. Click Test to test feature measurement.

  3. Click Create and then Close.
