Flush and Gap Features Around a Defined Contour

The ability to extract a series of Flush and Gap features around a defined contour is available. See the following examples.

First Curve Selection

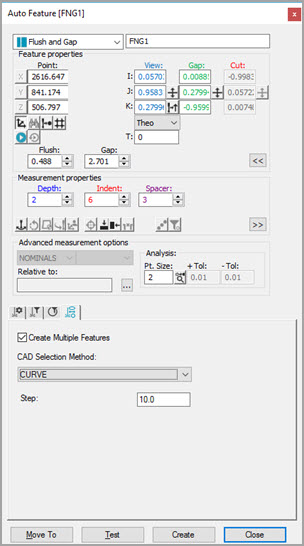

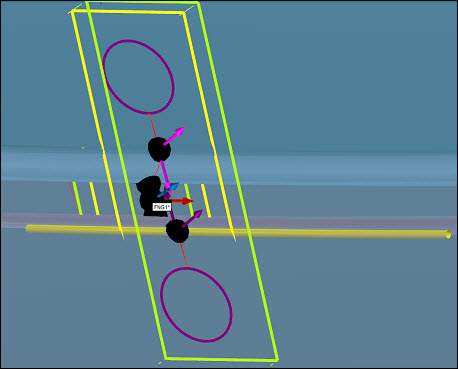

Flush and Gap Auto Feature - First Curve Selection

Additional Curve Selection with Ctrl Key

To select additional curves, press and hold the Ctrl key.

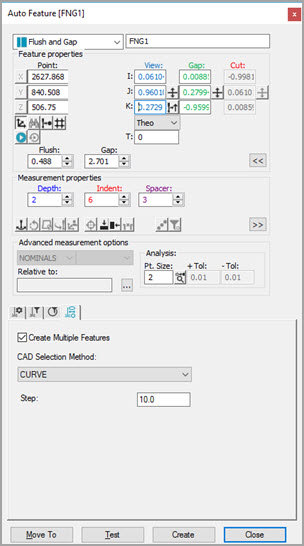

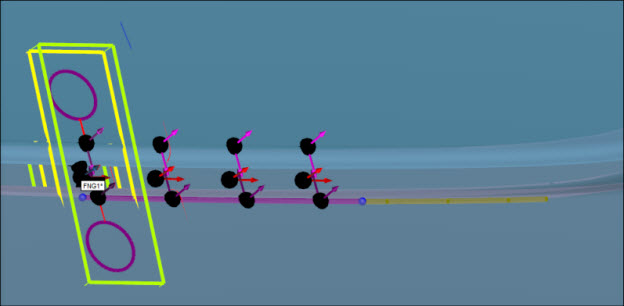

Flush and Gap Auto Feature - Additional Curve Selection

To select additional curves, continue to press and hold the Ctrl key to create the Flush and Gap features.

Result

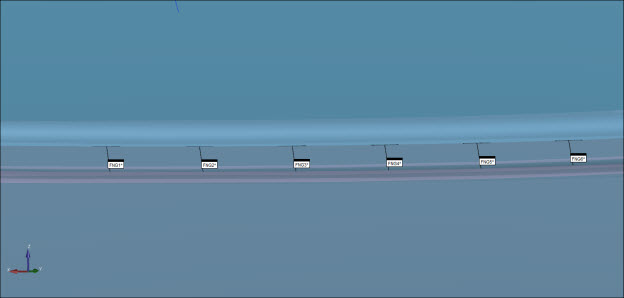

Flush and Gap Auto Feature - Result
