CMS sensors provide you with an additional area called Zoom, located at the bottom of the Laser Scan Properties tab of the Probe Toolbox. This area tells the sensor to work in predefined zoom states, with each state comprised of a specific combination of sensor frequency, data density, and Field of View (FOV) width.
Sample Zoom area

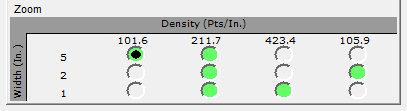

This area displays a grid of option buttons arranged in columns and rows. Across the top, the "columns" show the data density. Along the side, the "rows" list the FOV width. You can only select proper combinations which are the option buttons with a green background. The software grays out the improper combinations.
You can hover your mouse pointer over any valid option button to displays a yellow tooltip that details its scan mode information.
Sample tooltip under the mouse
Examples of CMS Scan Zoom States
Maximize your help viewer, and then click on the images below. Notice how different scan states change the display in the Laser tab:
4.1 Pts/mm and 124mm Width
8.4 Pts/mm and 60mm Width
16.8 Pts/mm and 24mm Width

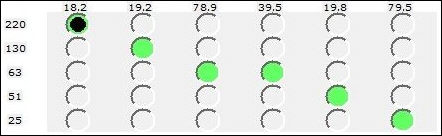

Available Scan Zoom States for HP-L-20.8
Width (mm) |
Density (Pts/mm) |
 |
