The Valisys software is a product from Tecnomatix Technologies, Inc. that frequently uses other vendor’s software to provide the actual machine control to operate CMMs. PC-DMIS can support this mode of operation.
Although frequently referred to as the Valisys interface, this interface should not be confused with an actual machine interface. The connection is between a Valisys host computer and a computer that runs PC-DMIS. All of the logic for supporting this mode is within the main PC-DMIS executable file. The various interface DLLs that the PC-DMIS executable file uses to communicate with CMMs do not contain any logic specific to the Valisys mode.

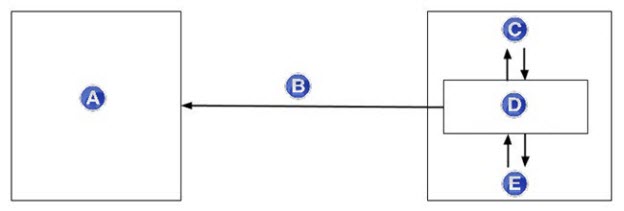

The connection between Valisys and PC-DMIS can be via either TCP/IP or serial (RS232) communications. This is independent of the method by which PC-DMIS communicates with a particular CMM. The following diagram illustrates the general structure and data flow:
(A) - Valisys Host Computer
(B) - Serial (RS232) or TCP/IP
(C) - Computer with PC-DMIS
(D) - CMM Specific Interface DLL
(E) - Function Calls
