EMPTY

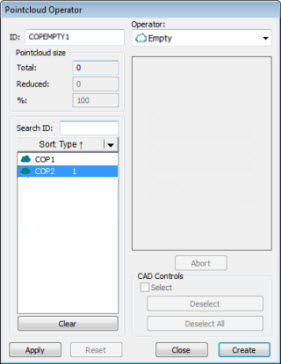

Pointcloud Operator dialog box - EMPTY Operator

This operation deletes all of the data contained in a selected COP or operator command. When you execute this command, PC-DMIS removes the data of the associated COP.

To apply the EMPTY Pointcloud operation to a pointcloud:

1. If you have more than one pointcloud defined, position your cursor at the location of the pointcloud you want to empty. If you only have one pointcloud defined, place the cursor on or above it.

2. Click Empty Pointcloud () on the Pointcloud toolbar, or select Operation | Pointcloud | Empty.

3. Click Create to insert a COP/OPER,EMPTY command into the Edit window.

Once you apply this command to a COP, there is no way to restore the COP data. You cannot click Undo to restore the data.
