The ability to extract a series of Flush and Gap features around a defined contour is available. See the following examples.

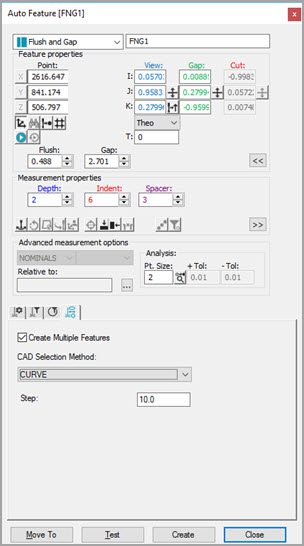

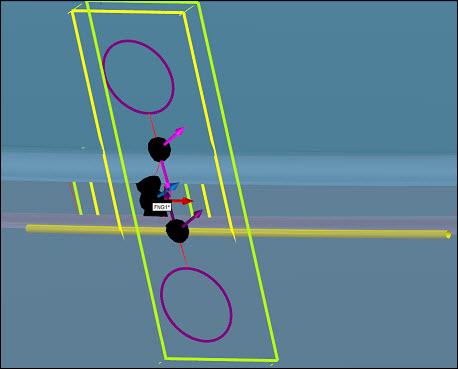

First Curve Selection
Flush and Gap Auto Feature - First Curve Selection

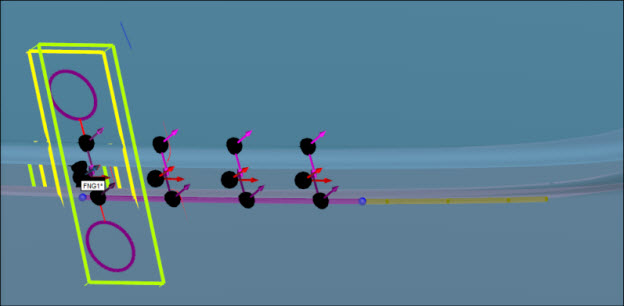

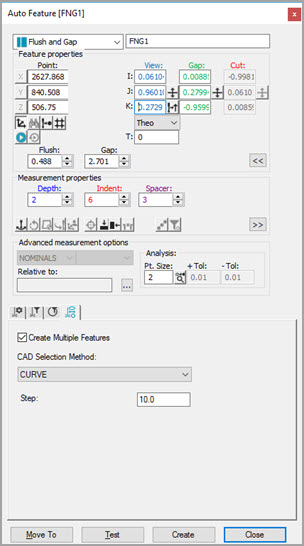

Additional Curve Selection with Ctrl Key
To select additional curves, press and hold the Ctrl key.
Flush and Gap Auto Feature - Additional Curve Selection
To select additional curves, continue to press and hold the Ctrl key to create the Flush and Gap features.

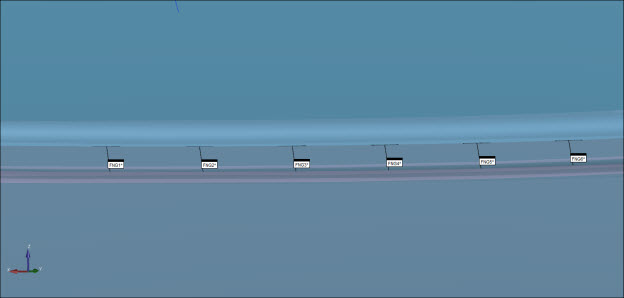

Result
Flush and Gap Auto Feature - Result
