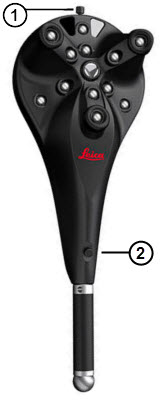

B-Probe Buttons
Button 1 - Button 1 functions are:
Click and hold to turn on.
Once the probe turns on, use the button to take measurements.
Button 2 - Button 2 functions are:
Click and hold to turn on.
Once the probe turns on, use the button to take measurements.
Click and hold to turn the probe off.
IJK Behavior on B-Probe Points
If aligned to the part, PC-DMIS always stores IJK values perpendicular to one of the active coordinate system axes, except if you use Point Only mode.
