The following parameters appear in the column headings of the target list in the Hit Targets tab when measuring features using the Manual Target measuring method (for available measuring methods, see "Measuring Features Using a Vision probe"):

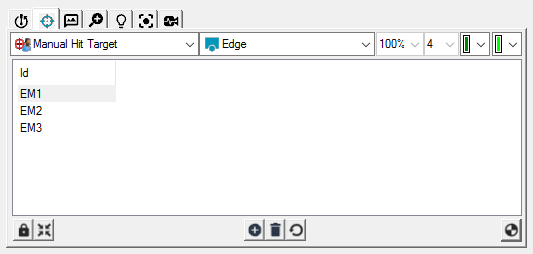

Edge Parameter Set
To change a value, double click on the current value for the desired target. If a value says N/A, then that parameter is "not applicable" to the current set. To change a parameter for multiple targets at once, select the targets, and then right click on one of them and change the value. It will be updated for all.
ID: This displays a unique identifier for the item in the target list. This same ID is used on the tooltip for the target in the Vision tab of the Graphic Display window.
Illumination: This shows the illumination values to be used for this target. To change the illumination for a specific target, select the target in the Hit Targets tab, or on the Vision tab of the Graphic Display window, and change the illumination on the Illumination tab. For information on how to do this, see "Probe Toolbox: Illumination tab".
Focus Parameter Set
For information, see the "Hit Target Focus Parameter Set" target.
