Feature Based Clipping Parameters

Feature Based Clipping area for non-plane auto features

PC-DMIS can clip laser data in both the horizontal and vertical directions when you type a distance in the Horizontal box and, when available, the Vertical box. This distance clips all of the laser data outside of the defined distance and excludes that data when it extracts the feature.

Alternately, for the Plane auto feature, you can clip data within an offset boundary around all of the CAD elements on a surface. This is also termed CAD segregation. See "CAD Offset" below.

For the Cone auto feature:

• The value for the Horizontal option defines how much larger the circular boundary (within which the feature points lie) is than the theoretical diameter.

• The value for the Vertical option defines how much longer the cylindrical boundary (within which the feature points lie) is than the theoretical length.

Horizontal and Vertical Clipping

All of the auto features support horizontal clipping. These features support vertical clipping:

• Circle

• Cone

• Cylinder

• Polygon

• Edge Point

• Round Slot

• Square Slot

• Surface Point

• Plane

The clipping distances defined in the feature based clipping rings are shown as colored rings. The horizontal clipping appears as a yellow ring, and the vertical clipping appears as a light-green ring.

Horizontal Inner Clipping

For inner features only, you can apply the horizontal inner clipping which appears as an innermost yellow ring.

These features support horizontal inner clipping:

• Circle

• Polygon

• Round Slot

• Square Slot

You can assign the size of the horizontal inner clipping between zero and half of the nominal size of the feature. The nominal size of each feature is defined as:

• Diameter for Circles

• Inner Diameter for Polygons

• The shortest value between the Width and Length for Round Slots or Square Slots

The Horizontal Inner Clipping parameter is available in the Feature Based Clipping area of the Feature Extraction tab. You can also use the Inner_Horizontal_Clipping registry entry in the Settings Editor to set this value. For details, see the "Inner_Horizontal_Clipping" topic in the PC-DMIS Settings Editor documentation.

Clipping Examples

Sample Circle auto feature with:

A - Horizontal Outer Clipping Ring

B - Vertical Clipping Ring

C - Horizontal Inner Clipping Ring

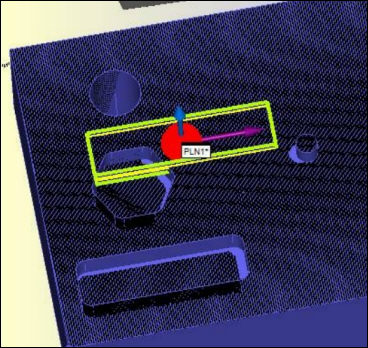

Sample Plane auto feature with horizontal and vertical clipping enabled

CAD Offset

Feature Based Clipping area for Plane auto feature

You can enable the CAD offset option for all 3D auto features (Plane, Cone, Cylinder, and Sphere). The CAD offset option provides a way for PC-DMIS to "shrink away" from the selected CAD face and eliminate points which are within the offset distance to the edges of the feature.

For Plane auto features, when you select this check box, PC-DMIS creates a yellow offset boundary around each feature in the CAD model on the surface. For a Cone, Cylinder or Sphere auto feature, PC-DMIS does not display this yellow offset boundary outline.

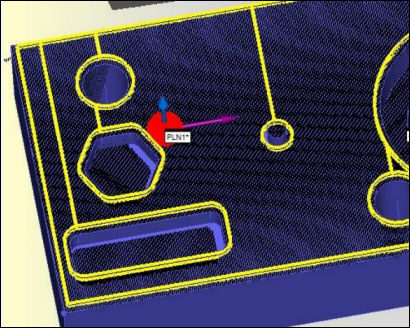

Example of a Plane auto feature with CAD-based clipping enabled

Example of a Cylinder auto feature with no CAD offset (left) and with 2mm CAD offset (right)

You must select a CAD face when using the CAD offset option.
