Laser Polygon

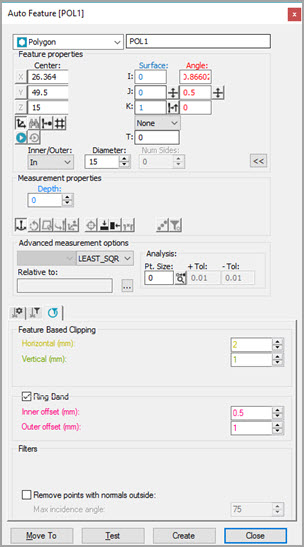

Auto Feature dialog box - Polygon

You can only use this dialog box to measure a hexagon feature (a polygon with 6 sides).

To measure a hexagon feature with a laser sensor:

  1. Access the Auto Features dialog box, and select Polygon.

  2. Do one of the following:

  1. Enter the necessary information in the Probe Toolbox tabs. Cycle through the Laser Scan, Laser Filtering, and Laser Clipping properties tabs to enter the information.

  2. If desired, click the Test button to test the feature.

WARNING: When you do this, the machine moves. To avoid injury, stay clear of the machine. To avoid hardware damage, run the machine at a slower speed.

  1. Click Create and then Close.

More:

Polygon Specific Parameters

Polygon Command Mode Text

Auto Polygon Paths
