Mesh IMPORT Operator

To create a Mesh IMPORT operator:

1. Click the Mesh Operator button () from the Mesh toolbar (View | Toolbars | Mesh) to access the Mesh Operator dialog box.

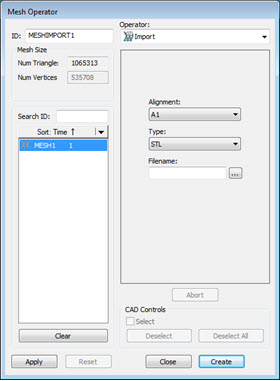

Mesh Operator dialog box - IMPORT operator

2. Select the IMPORT operator from the Operator list.

3. Select the mesh from the Feature List box.

4. Select the options to use. The Mesh IMPORT operator uses these options:

Alignment: Indicates the type of alignment to include when exporting the data.

Type: The option for the IMPORT operator is STL.

Filename: Indicates the name of the import file. Enter the path and file name, or use the Browse button to navigate to it.

5. Click Create. The IMPORT command is inserted into the Edit window. The command is MESH/OPER,IMPORT. The mesh data imports from the file location defined in the Filename box.
