Mesh RESET Operator

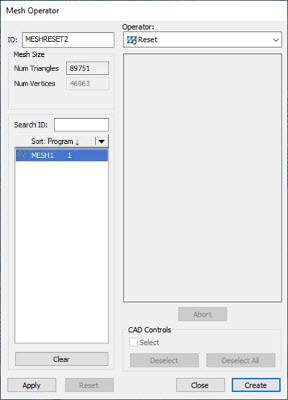

Mesh Operator dialog box - Mesh RESET Operator

The Mesh RESET operation reverts all Mesh SELECT operations and returns the original Mesh object.

To immediately apply the Mesh RESET operation, click the Mesh RESET () button on the Mesh toolbar.

To create the Mesh Reset command:

1. From the Mesh toolbar (View | Toolbars | Mesh), click the Mesh Operator button to open the Mesh Operator dialog box.

2. From the Operator list, select the Reset operator.

3. Select the Mesh from the ID list and then click Apply.

4. Click Create to insert a MESH/OPER,RESET command into the Edit window.
