Node-Locked License Installation

The Hexagon Manufacturing Intelligence CLM Licensing tools are installed with the Hexagon software product (PC-DMIS, DataPage+, and other products). The process creates desktop shortcuts to the necessary CLM tools.

The installation of the software and activation of the software package are done with an installation wizard that automatically guides you through the complete installation and activation process. The following chapter explains these setup steps in detail.

Note that the installation steps and screen shots in this document are taken from the Hexagon software package. The dialog boxes for other software packages may differ slightly.

1. Start the CLM Licensing tool. To do this, double-click the CLM Admin desktop shortcut that was created during the installation of the Hexagon software product. The Client License Administrator dialog box appears.



   Client License Administrator dialog box

2. Click Activate new licenses, and type or copy your entitlement ID into the Entitlement ID box.

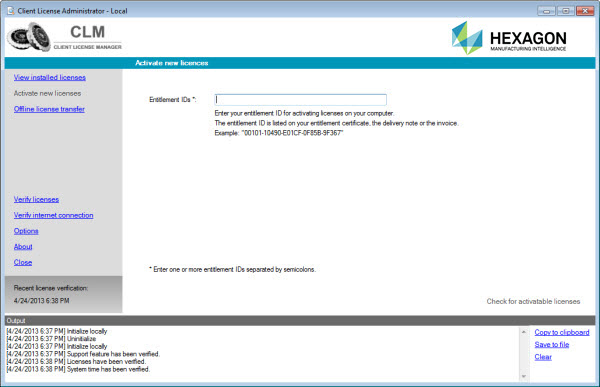

   Client License Administrator dialog box - Activate new licenses

3. Click Check for activatable licenses to display the summary of the license.

4. Click Activate new licenses.

5. Click View Installed Licenses to view all activated licenses.

All new licenses are now activated, and you can use the corresponding products.
