Completing the CAD Selection Group for a Contour Feature

The options in the CAD selection group display the CAD coordinates for a Contour feature and enable you to perform CAD-related functions. For a Contour feature, the coordinates are one or more CAD points that define the section cut plane, start point, and end point of the profile in which the contour points lie. For example:

A. Single click on a selection point on the curved surface

A. Single click on a selection point on the curved surface

A. Multi-click on the selection points on the two planar surfaces

A. Multi-click on the selection points on the two planar surfaces

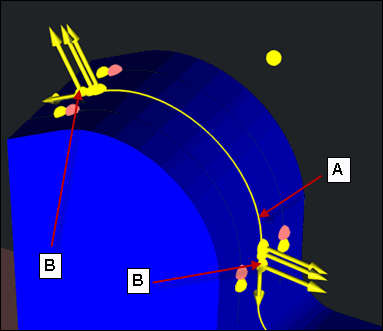

A. Section cut plane and B. CAD points that appear in the CAD selection area

A. Section cut plane
B. CAD points that appear in the CAD selection area

Examples of the CAD Selection Point

When you select a CAD selection point for a Contour feature, you must click near a boundary. The selection point is projected on the boundary, and it gives the direction of the slice. For example:

A. Correct CAD selection point

A. Correct CAD selection point

Do not click in the middle of a surface. In this case, the result fails. For example:

A. Incorrect CAD selection point

A. Incorrect CAD selection point

You can see the selected surface and therefore the corresponding boundaries by holding down the Shift key, hovering your pointer over the CAD drawing, and then clicking close to a border/boundary line.

Feature Options

The following graphics show the options for each feature.

BA feature:

CAD selection group for BA feature

CAD selection group for BA feature

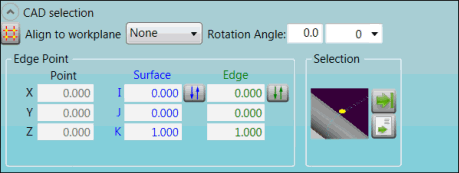

BF, BH, and BK features:

CAD selection group for BF, BH, and BK features

CAD selection group for BF, BH, and BK features

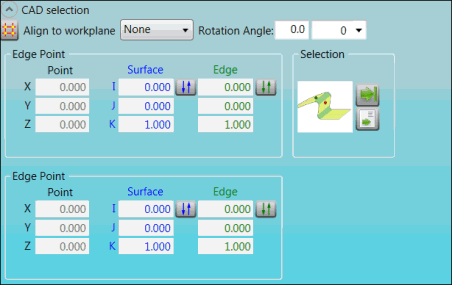

BM and BN features:

CAD selection group for BM and BN features

CAD selection group for BM and BN features

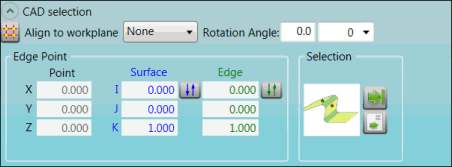

BP feature:

CAD selection group for BP feature

CAD selection group for BP feature

Descriptions

The following table describes the options.

For descriptions of the icons that appear in this group, see "Using the Icons".

Item

Description

Rotation Angle box

Type the rotation angle of the section cut plane.

Drop-down list

Type or select the CAD cut-off distance from the click point. A value of "0" indicates that the distance is unlimited.

Single click check box

To enable single-click CAD selection, click this check box. To enable multi-click CAD selection and display the Counter list, clear the check box.

Counter list

Select the number of ESF features of this type in the measurement routine.

Align to workplane list

Select the workplane.

Edge Point area

X, Y, and Z Point boxes: These boxes display the X, Y, and Z nominals for the feature's location.

I, J, and K Surface boxes: These boxes display the feature's surface locations.

Edge boxes: These boxes display the calculated approach direction (vector) for the edge hit or for the points.

Selection area

BA navigation icon

This image displays the navigation for the single-click or multi-click CAD selection.

Selection area

Navigation path

This image displays the navigation path.
