Performing an Area Scan

To perform an Area Scan from the Area Scan dialog box and create the Area Scan command:

  1. Select a Surface probe.

  2. Open the Area Scan dialog box from the menu (Insert | Scan | Area Scan) or click the Area Scan button from the Tracker Measure toolbar.

From the Area Scan dialog box, there are three methods you can use to create an Area Scan:

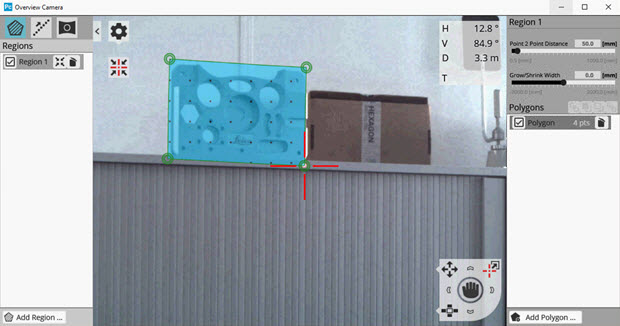

Define the Area Scan region and settings from the Overview Camera window.

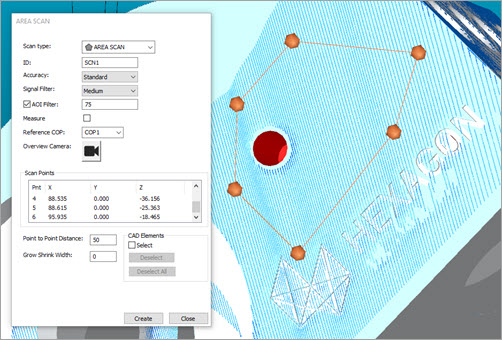

Define the Area Scan regions when aligned to a CAD model.

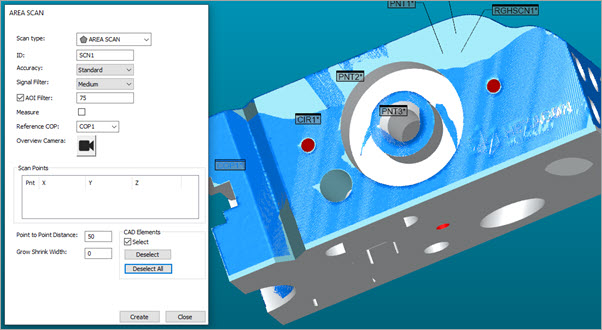

Perform and Area Scan on selected CAD surfaces when aligned to a CAD model.

  1. You can update the ID for your scan in the ID field or use the default name. This is the name of the scan command that PC-DMIS displays in the Edit window.

  2. Select an accuracy option from the Accuracy Settings list of the Area Scan dialog box. The available options are: Standard, Fast, and Precise.

  3. Select the Signal Filter option from the list.

  4. Select the AOI Filter check box to enable this filter if necessary, and then enter a valid value.

  5. Select the Measure check box if you want to begin measurements immediately after you close the dialog box. This option is available when you run PC-DMIS in either Online or Offline mode as long as the definition exists on the CAD.

  6. Select a COP from the Reference COP list. This is where PC-DMIS stores the scanned pointcloud data.

Since PC-DMIS stores the data in a pointcloud, you must have a valid Reference COP ID defined in your measurement routine to create an Area Scan. If you don't select a COP from the list, or if you enter one that is not yet created, PC-DMIS displays a prompt to ask if you want to create a new COP.

  1. From the Area Scan dialog box, click Create to add the Area Scan command into the Edit window, and then click Close to return to the PC-DMIS main screen.

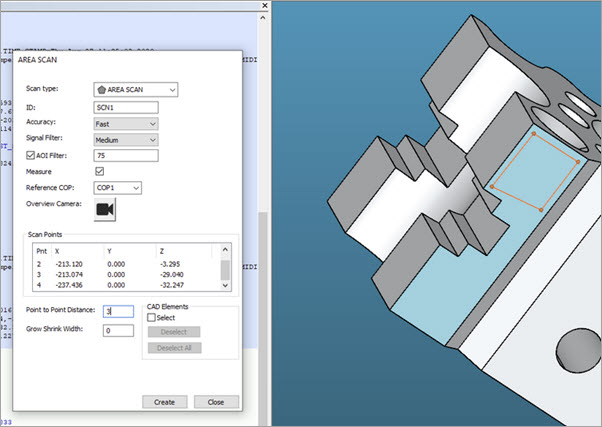

Area Scan example

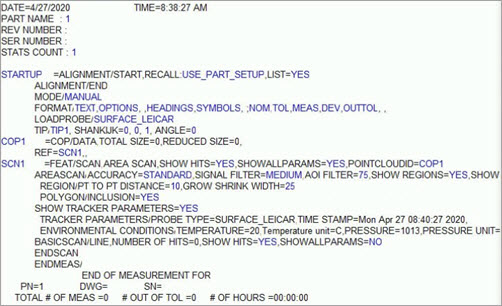

Example of the Edit window showing the Area Scan command with Region settings

PC-DMIS displays the scan's path points and their XYZ coordinate locations in the Scan Points area of the Area Scan dialog box.
