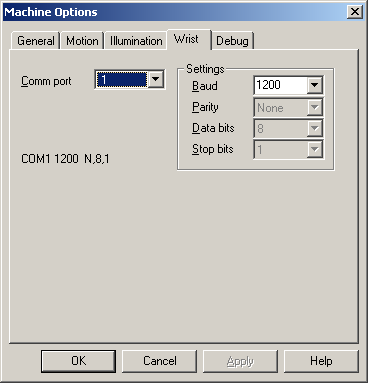

Machine Options dialog box - Wrist tab
The Wrist tab allows you to specify the communications port and settings that are used to connect your computer to your optical measuring device’s wrist controller. This is for dedicated vision machines that have a PH9 type wrist fitted and the Wrist LMS license or portlock option selected (such as Mycrona).
On a CMM-V or HP-C-x sensor, this tab is not available, because the wrist control is done through the existing CMMI interface.
