BOOLEAN

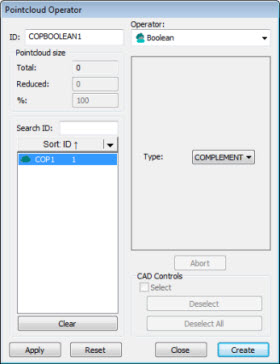

Pointcloud Operator dialog box - Boolean Operator

The software applies this operation on one or two operators or COP commands you select.

To apply the Boolean operation to a pointcloud, click Pointcloud Boolean Operation () on the Pointcloud toolbar.

The Boolean operator uses the following option:

Type - This option indicates the type of Boolean operator to apply:

COMPLEMENT - This type generates the points that are not visible in a single-selected command.

UNITE - When applied to the two selected commands, this type generates a set of data points that contains all of the points in those commands.

INTERSECT - This type generates the set of data points that have the same locations in two selected commands.

DIFFERENCE - This type removes from the first selected command all of the points that are in common with the second selected command.

Click Create after you edit the command to insert a COP/OPER,BOOLEAN command into the Edit window.

For example:

COPBOOLEAN1=COP/OPER,BOOLEAN,UNITE,SIZE=0

REF,COPOPER2,COPOPER3,,
