To understand how PC-DMIS measures the annotation point, you can have PC-DMIS display the initial clicked point, the point on the opposite side of the part thickness, and the connecting line in the Graphic Display window. To do this, click the Show annotation opposing points check box.
You can change the size of the annotation points and the thickness of the connecting line from the Pointcloud area of the OpenGL tab on the CAD and Graphic Setup dialog box (Edit | Graphic Display Window | OpenGL). For details, see "Changing OpenGL Options" in the "Setting Your Preferences" chapter of the PC-DMIS Core documentation.

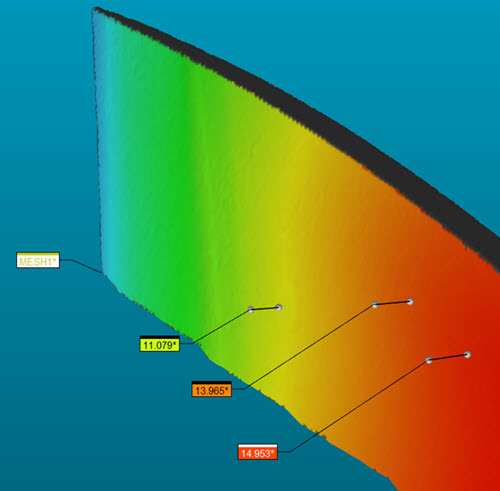

Thickness colormap example with the Show annotation opposing points check box selected
