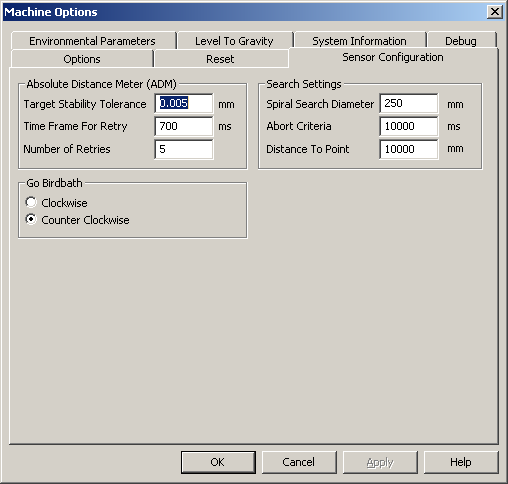

Machine Options dialog box - Sensor Configuration tab
Absolute Distance Meter (ADM)
Target Stability Tolerance - This tolerance (between 0.005 and 0.1 mm) determines the maximum range of movement of a reflector target during ADM measurements. Values beyond this range will show an error message.
Time Frame For Retry - Sets the period of time for determining target stability. If the target is stable, an ADM measurement is taken.
Number of Retries - Sets the number of attempts for an ADM measurement before aborting, because the stability of the target has exceeded the given tolerance.
Search Settings - If any of these search criteria are not met, then the search process aborts.
Spiral Search Diameter - Diameter in which to search for the target.
Abort Criteria - Time in which the target should be found.
Distance To Point - Distance at which to search for the target.
Go Birdbath - The Leica Tracker rotates to the Birdbath position in the Clockwise or Counterclockwise direction from its current position.
