转换为点区域

转换为点区域

扫描对话框中的转换为点区域允许您建立激光点命令。命令从构成扫描的点开始。

触测类型列表

默认设置为无点。

对于周边扫描，可以在列表中选取“曲面点”或“边缘点”。对于所有其他类型的扫描，您只能选择“曲面点”。

这些点是在折叠的组命令中收集的。命令的名称包括相关扫描的名称，与其关联的点云，以及以“边缘”开头的点 ID（如果您选取了边缘点）。

曲面点组命令模式文本

以下是收集“曲面点”折叠的组命令的示例：

COP           = COP/DATA,TOTAL SIZE=468492,REDUCED SIZE=468492,
               FINDNOMS=NO,REF,SCN1,,
SCN1           =  FEAT/SCAN,PERIMETER,NUMBER OF HITS=4,
               SHOW HITS=NO,SHOWALLPARAMS=NO,POINTCLOUDID=COP
               MEAS/SCAN
               BASICSCAN/PERIMETER,NUMBER OF HITS=4,
               SHOW HITS=NO,SHOWALLPARAMS=NO
               ENDSCAN
               ENDMEAS/
SCN1_COP_PNT_GRP1=GROUP/SHOWALLPARAMS=NO
               EXECUTION CONTROL=AS MARKED
               ENDGROUP/ID=SCN1_GRP1

以下是收集“边缘点”的组命令的示例：

SCN2       =FEAT/SCAN,PERIMETER,NUMBER OF HITS=3,SHOW HITS=NO,SHOWALLPARAMS=NO,POINTCLOUDID=COP
            MEAS/SCAN
            BASICSCAN/PERIMETER,NUMBER OF HITS=3,SHOW HITS=NO,SHOWALLPARAMS=NO
            ENDSCAN
            ENDMEAS/
SCN2_COP_EDGEPNT_GRP2=GROUP/SHOWALLPARAMS=YES
            EXECUTION CONTROL=AS MARKED
PNT5         =FEAT/LASER/EDGE POINT/DEFAULT,CARTESIAN
            THEO/<133.992,0,0>,<0,-1,0>,<0,0,1>
            ACTL/<133.992,0,0>,<0,-1,0>,<0,0,1>
            TARG/<133.992,0,0>,<0,-1,0>,<0,0,1>
            DEPTH=0
            INDENT=1.5
            SPACER=0.5
            SHOW FEATURE PARAMETERS=NO
            SHOW_LASER_PARAMETERS=YES
              REFERENCE ID=COP
              SOUND=OFF
              HORIZONTAL CLIPPING=3,VERTICAL CLIPPING=3
              REMOVE POINTS WITH NORMALS OUTSIDE=ON,10
PNT6       =FEAT/LASER/EDGE POINT/DEFAULT,CARTESIAN
            THEO/<138.992,0,0>,<0,-1,0>,<0,0,1>
            ACTL/<138.992,0,0>,<0,-1,0>,<0,0,1>
            TARG/<138.992,0,0>,<0,-1,0>,<0,0,1>
            DEPTH=0
            INDENT=1.5
            SPACER=0.5
            SHOW FEATURE PARAMETERS=NO
            SHOW_LASER_PARAMETERS=YES
              REFERENCE ID=COP
              SOUND=OFF
              HORIZONTAL CLIPPING=3,VERTICAL CLIPPING=3
              REMOVE POINTS WITH NORMALS OUTSIDE=ON,10
PNT7       =FEAT/LASER/EDGE POINT/DEFAULT,CARTESIAN
            THEO/<143.992,0,0>,<0,-1,0>,<0,0,1>
            ACTL/<143.992,0,0>,<0,-1,0>,<0,0,1>
            TARG/<143.992,0,0>,<0,-1,0>,<0,0,1>
            DEPTH=0
            INDENT=1.5
            SPACER=0.5
            SHOW FEATURE PARAMETERS=NO
            SHOW_LASER_PARAMETERS=YES
              REFERENCE ID=COP
              SOUND=OFF
              HORIZONTAL CLIPPING=3,VERTICAL CLIPPING=3
              REMOVE POINTS WITH NORMALS OUTSIDE=ON,10
            ENDGROUP/ID=SCN2_COP_EDGEPNT_GRP2

从在扫描中指定的 COP 中抽取曲面点和边缘点。

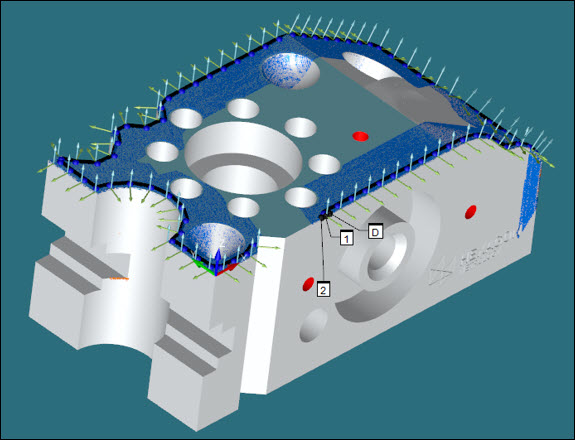

使用扫描对话框以进行“圆周扫描”，思考以下显示从 COP 抽取的曲面点和边缘点的图表：

仅创建点

如果选取仅建立点复选框，PC-DMIS 不建立扫描命令。在这种情况下，组命令不包含扫描的名称。

如果建立这两个命令，在编辑窗口中，扫描命令在组命令之前。
