Performing a Line Basic Scan

To scan the surface along a line, select Insert | Scan | Line. The LINE tab in the BASICSCAN dialog box appears:

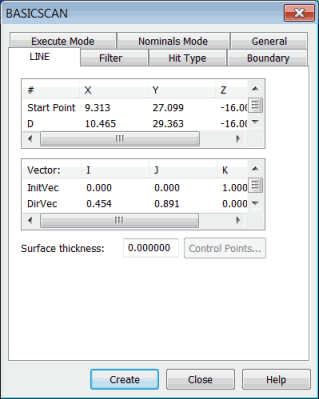

BASICSCAN dialog box - LINE tab

This scan needs a start point, a direction point, and an end point. It uses the start and end points for the line, and the direction point to calculate the cut plane. The probe always remains within the cut plane while doing the scan.

The line basic scan also uses the following vectors for execution:

The cut vector is the cross product of the initial touch vector and the line between the start and end points.

Defining a Line Basic Scan

  1. Select the start point in the # column, and then either double-click it to type in a value, or click on the CAD model to select a point from the selected surface.

  2. Select the direction point (D) in the # column, and then either double-click it to type in a value, or click on the CAD model to select a point from the selected surface.

  3. Select the end point in the # column, and then either double-click it to type in a value, or click on the CAD model to select a point from the selected surface.

  4. Modify the vectors as needed.

  5. Complete the options on any other tabs as needed in the BASICSCAN dialog box, and then click OK. PC-DMIS inserts the line scan into the Edit window.

The Edit window command line for a line basic scan is:

SCN5 =BASICSCAN/LINE,NUMBER OF HITS=16,SHOW HITS=NO,SHOWALLPARAMS=YES

<194.592,96.658,0>,<208.587,92.377,0>,CutVec=0.2925585,0.9562476,0,

DirVec=0.9562476,-0.2925585,0

InitVec=0,0,1,EndVec=0,0,1,THICKNESS=0,PROBECOMP=YES,AVOIDANCE MOVE=NO,DISTANCE=0

FILTER/DISTANCE,1

EXEC MODE=RELEARN

BOUNDARY/PLANE,<208.587,92.377,0>,PlaneVec=-0.9562476,0.2925585,0,Crossings=1

HITTYPE/VECTOR

NOMS MODE=NOM,10

ENDSCAN
