Step 8: Scale the Image

The Scale to Fit icon () on the Graphic Modes toolbar scales the image in the Graphic Display window.

After you measure the three features, click the Scale to Fit icon (or, select Operation | Graphic Display Window | Scale To Fit) to display all of the measured features in the Graphic Display window.

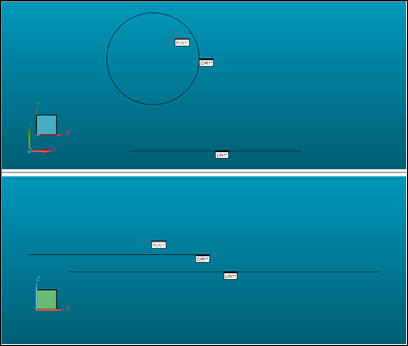

All Features - Scaled

Graphic Display window with measured features

The next step in the measurement process is to create an alignment.

Go to the next step: "Create an Alignment"
