You can use the Advanced feature for the Blade Section command to specify control points. Control points define the point density in zones of CC or CV side of a blade section.
To use additional control points, from the Blade Section dialog box, click the Advanced button to display the Control Points area:

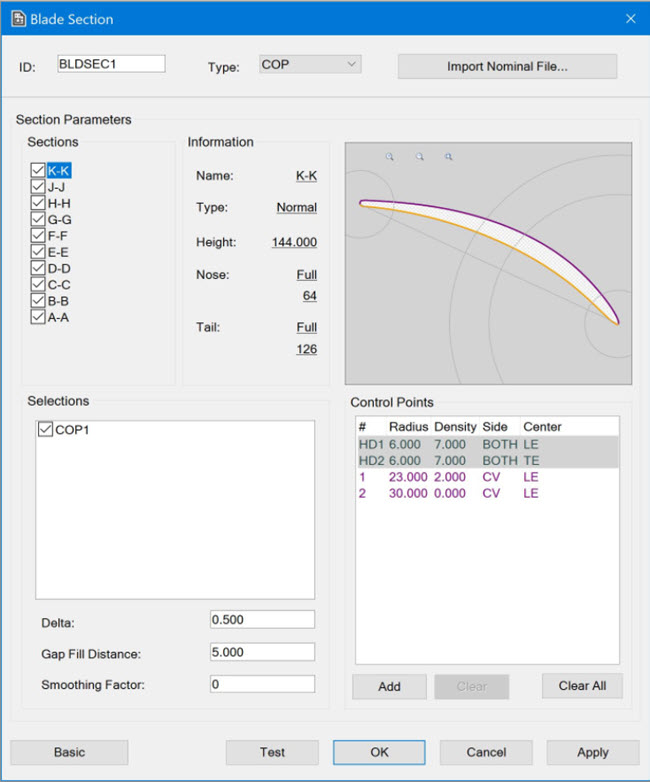

Blade Section dialog box with Control Points area
The Control Points area contains these items:

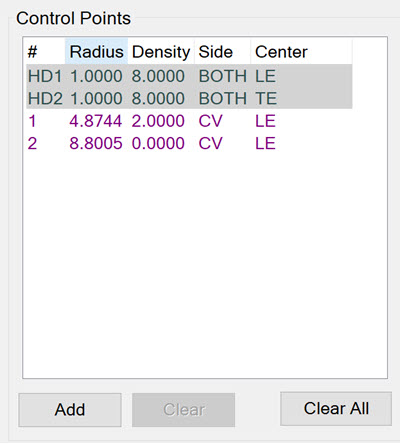

Control Points area
# column - This column displays the control point number. PC-DMIS defines the high density control points as HD1 and HD2, and additional control points as 1, 2, and so on.
Radius column - This column displays the radius of the control point circle.
Density column - This column displays the point density inside the control point circle.
Add button - This button adds new control points. For information on how to add control points, see "Adding a Blade Section Control Point".
Side column - This column defines the location on the blade where the point density is controlled.
CV - Convex
CC - Concave
BOTH - Convex and Concave
Center column - This column displays the center of the control point circle.
Clear button - This button clears any selected control point in the Control Points area.
You cannot delete the HD1 and HD2 control points.
Clear All button - This button clears all control points that were added.
