Setting Up the Live View

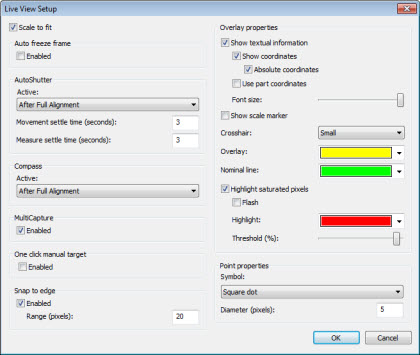

Live View Setup dialog box - Manual Mode

To open the Live View Setup dialog box, select the Edit | Graphic Display window | Live View Setup menu or right-click within the Vision tab and select Setup from the resulting shortcut menu.

This option is only available if the Vision option is enabled on your LMS license or portlock.

The Live Image Setup dialog box allows you to configure how the image appears in the Vision tab of the Graphic Display window. It contains these controls:

Scale to Fit - This check box determines whether or not the display of the part should be scaled to within the limits of the Graphic Display window.

Auto freeze frame

When you mark the Enabled check box, you can press the Live View Freeze button to toggle it on and off at measurement routine execution time. This action freezes the measured points on the screen until the next points are available for display.

This is also useful for machines where "image tear" occurs during stage movements.

AutoShutter

AutoShutter detects when a target (which may consist of multiple ROIs) is ready to measure points. The three criteria for readiness are: the ROI is entirely within the FOV, the stage has stopped movement, and the user-defined delays have elapsed. When these criteria are satisfied, PC-DMIS automatically takes the points and proceeds to the next ROI.

The options in this area are used when AutoShutter Toggle is selected at the bottom of the Vision tab (see "Live View Controls").

AutoShutter does not fire for DCC mode features with enabled Manual Preposition.

Active - Determines when the, AutoShutter capability is used to measure features: Always, After Partial Alignment, or After Full Alignment.

Movement settle time (seconds) - This field specifies a settle time (in seconds) before point detection firing. This settle time begins once the current ROI that was not entirely in the FOV has entirely entered the FOV. The user may use this field to slightly delay the automatic firing to review and improve ROI placement within the FOV.

Measure settle time (seconds) - This field specifies a settle time (in seconds) before point detection for the FIRST ROI of a feature even if this ROI is already entirely in the FOV. The user may use this field to slightly delay the automatic firing to review and improve ROI placement within the FOV. This value is only applied to the first ROI of a feature.

The Movement Detected settle is the dominate value if it conflicts with the Measure Feature settle value.

Compass

The Compass features are only available in Manual mode.

This guides the operator to move the stage to get the next feature into the Field Of View by showing an arrow and a distance to move.

Active - Determines when the Compass capability is used to measure features: Always, After Partial Alignment, or After Full Alignment.

The Active option is applied when Compass Toggle is selected at the bottom of the Vision tab (see "Live View Controls").

MultiCapture

To speed up the execution, the MultiCapture functionality causes the software to look at features ahead in the measurement routine and create groups that can be executed within a single camera picture (Live View). These are bundled together and executed simultaneously. This functionality is used when you mark the Enabled check box.

PC-DMIS marks this check box by default. Most of the time, it is enabled because it speeds up measurement. But there may be times when you want more visual data on each feature as it is measured. In those cases, you can clear this check box.

The MultiCapture area of the dialog box is only active in DCC mode, or in Manual mode when the AutoShutter conditions have been met.

For example, suppose you have five edge point features that all fit within a single Live View and you have MultiCapture enabled. Instead of the machine measuring the five edge point features separately, during execution, PC-DMIS displays a MultiCapture overlay for the feature set as a whole. This overlay provides information about what features are in the group and how many. They are all executed simultaneously as if one feature were being executed.

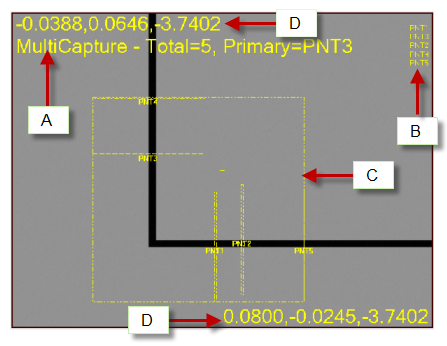

The sample MultiCapture overlay here shows five edge points combined into a single grouping. The overlay provides the following information:

  1. The MultiCapture message lets you know you are in MultiCapture mode. It displays the total number of features to be measured in the current grouping and the primary feature in that grouping.

  2. This displays all the features within the MultiCapture region to be measured.

  3. This dotted rectangular box is the MultiCapture region. It bounds all the features for the current grouping.

  4. These numbers provide the XYZ coordinates for the top-left and bottom-right corners of the MultiCapture region.

One-click manual target

Select the Enabled check box in this section to enable the Manual Targets Single Click Execution feature. When enabled at execution time, a larger black and white crosshair cursor appears on the Live Image View display. Instead of dragging and dropping a manual target to a desired location on a feature, position the crosshair to the targeted location, and click the left mouse button. If Snap to Edge is enabled, PC-DMIS automatically performs edge detection to snap the crosshair to the edge.

Snap to edge

When you mark the Enabled check box, and you are programming features in the Vision tab, PC-DMIS Vision detects the nearest edge and snaps the target anchor points to that edge. The value in the Range (pixels) box indicates the distance the software searches for this edge. If you have a blurred edge that you cannot bring into focus, you may find it necessary to not use snap to edge to reliably specify anchor points when programming a feature. This also applies at execution time for Manual Targets.

The Snap to Edge Toggle found at the bottom of the Vision tab also enables or disables this functionality (see "Live View Controls").

Overlay properties

This area lets you set the properties for various overlay elements that can appear in the Vision tab.

Show textual information - This check box show or hides the various live image informational overlays that appear inside the Vision tab.

Show coordinates - This check box determines whether or not coordinates are displayed inside the Vision tab.

Absolute coordinates - When this check box is selected, the overlaid coordinates are displayed as absolute values. For absolute values, the top-left and bottom-right coordinates show the actual position of those corner points in the current machine coordinates. When this option is not selected, relative values are displayed. For relative values, the top-left corner is shown as 0,0, and the bottom-right corner shows the length and width of the FOV in current units.

Use part coordinates - This check box determines whether or not coordinates are displayed in part coordinates.

Font size - This slider changes the font size of any textual overlays.

Show scale marker - This check box displays a scale marker in the bottom-left side of the Vision tab.

Crosshair - This list contains three options: None, Small, and Large. If you choose Large, the crosshair is extended to all sides of the Vision tab. If you choose Small, the crosshair is displayed as a small plus sign in the middle of the Live View. If you choose None, no crosshair is displayed.

Large Crosshair

Small Crosshair

Overlay - This list allows you to select the color used for most of the overlaid graphics and text on the Vision tab. This affects probe hits, targets, gages, and textual information for FOV coordinates, magnification, and focus. The default color is red.

Nominal line - This list allows you to select the color used for the nominal line in the targets.

Highlight saturated pixels - When this check box is selected, pixels on the Live Image View, where the illumination intensity is above the defined threshold, are highlighted to make them easily visible.

Flash - This check box determines whether or not the highlighted saturated pixels flash.

Highlight - This list allows you to select the color used to highlight the saturated pixels.

Threshold (%) - This slider changes the illumination intensity value. Pixels above this value are considered saturated.

Point properties

When PC-DMIS executes a vision feature, it draws the detected edge points in the Vision tab. While these points are shown only for an instant during execution, they are not quickly erased when editing and testing features. This area lets you control the size and shape of the point overlays drawn in the Vision tab.

Symbol - This list determines how point symbols are displayed. The options include Square dot, Round dot, and None (to not draw points at all).

Diameter (pixels) - This list determines the size of the displayed square or round-dot point symbol.
