Laser Cone

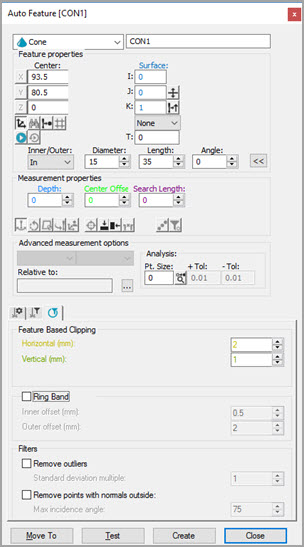

Cone Auto Feature

Auto Feature dialog box - Cone

To measure a cone with a laser sensor:

  1. Access the Auto Feature dialog box, and select Cone.

  2. From the Inner/Outer box, select In or Out.

  3. Do one of the following:

  1. Enter the necessary information in the Probe Toolbox tabs. Cycle through the Laser Scan, Laser Filtering, and Laser Clipping properties on the tabs to enter the information.

  2. If desired, click the Test button to test the feature.

WARNING: When you do this, the machine moves. To avoid injury, stay clear of the machine. To avoid hardware damage, run the machine at a slower speed.

  1. Click Create and then Close.

The location and direction vector of the feature define the center axis of the cone.
