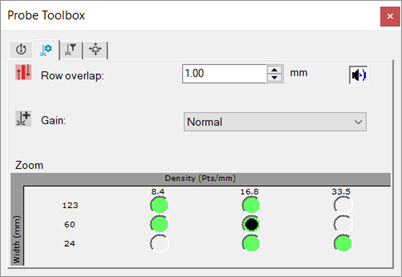

Probe Toolbox - Laser Scan Properties tab
The Laser Scan Properties tab defines how PC-DMIS acquires data from the scan, and whether or not scan lines and feature visualizations appear in the Graphic Display window.
Show/Hide Stripes - This button toggles the
display of the laser stripes on the part model. Click this button to allow
the laser scan stripes to appear in real time in the Graphic Display window.
PC-DMIS limits how the stripes appear in the Graphic Display window to
the distance of the feature nominal plus the Overscan value. The software uses the Overscan value to control the amount of clipping
and the visibility of the stripe. The graphic below gives an example of
how these stripes appear.

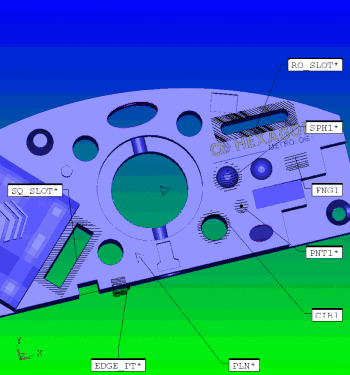

Scan features showing stripes
Sound ON/OFF - This button turns the sound on
or off. See "Using Sound Events".
Visualization Tools ON/OFF - This button toggles
the display of the colored visualization tools. For more information,
see "Understanding
the Visualization Tools".

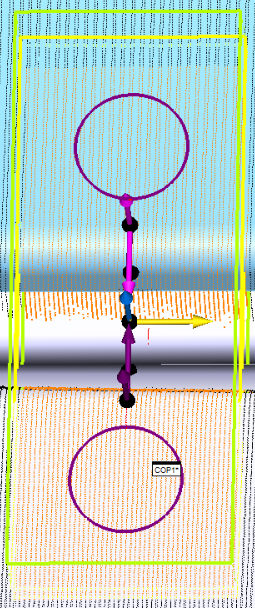

Show/Hide Segregated Points - This button toggles
the
display of those
points that the software passes to the feature extractor
engine based on the current settings.
Initialize Probe - This button starts or initializes
the laser which takes about 15 seconds and is only available for Portable
configurations. You can't do anything with the laser until you initialize
it.

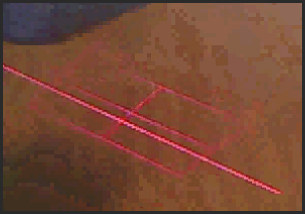

Projector: This button
is only available for V5 Perceptron probes on manual arms. Click
this button to turn on a projected grid
of red light that shines on the part and acts like
the cross hairs on a target. As you move the probe toward or away from
the part, the probe's laser scan line moves through this target. For optimal
results, the laser's scan line should line up with the center line of
this target. This essentially serves the same purpose as the scan
line indicator, which helps you to keep the probe at the optimal height
when you measure the part. Since this only functions in manual applications,
PC-DMIS disables this icon if you use the Probe Toolbox within the Auto Feature dialog box.
Starting with PC-DMIS 2019 R2, PC-DMIS no longer supports the Perceptron laser sensor. While you may still be able to install PC-DMIS 2019 R2 and later, PC-DMIS displays an error if you attempt to run measurement routines that use the Perceptron scanner. For additional information, please contact Technical Support.
AutoZoom ON/OFF - This button turns the laser
AutoZoom functionality on or off. Whenever you start the scan, AutoZoom
dynamically pans, zooms, rotates, and sizes the view containing the laser
data in the Graphic Display window to show the incoming data.
You can override the limitations with the up and down arrows, or enter a value into any of the boxes. However, your machine rejects invalid values and forces them to a valid number.
