You can view cross section Annotation and Distance Gage labels in reports in two ways:
Viewing labels from a report template that has a graphic image

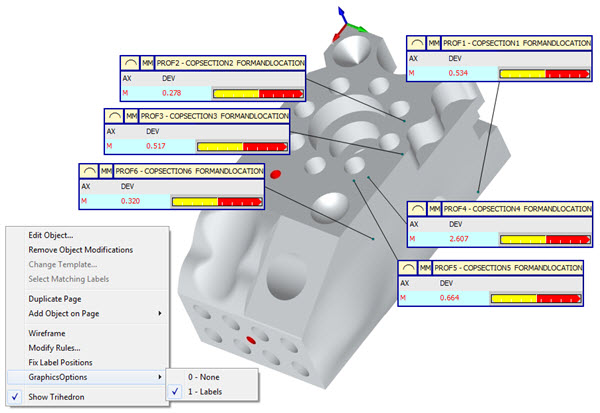

From any report template that has a graphic image, right-click the image to display a pop-up menu.
Click GraphicOptions and then 1 - Labels to display all the labels in your report. Click 0 - None to hide all the labels.
Viewing labels in the Report Graphical Analysis template from the Cross Section dialog box
Create the Annotations and Distance Gage items for your cross sections. For details on creating Annotations, see the "Cross Section" help topic. For details on creating Distance Gage items, see the "Measuring Cross Section Distance" help topic.
Create the Analysis View. For details on the Analysis View command, see the "Analysis View" description in the "Cross Section" help topic.
Click the Graphical Analysis option in the Report window (View | Report). The annotation and gage labels are automatically visible.
