How To Construct a Circle
Instructions | |||
|---|---|---|---|
1 | Select the features to use to construct a circle.
| ||

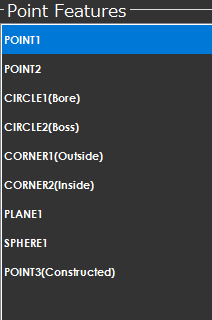

2 | Use the arrows to select or deselect features.
| ||

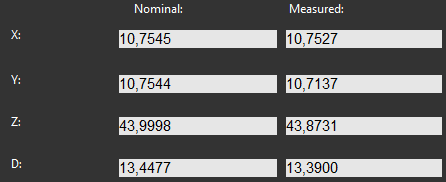

3 | Once the features are selected, review the values on the screen and make any adjustments to the nominal values if necessary.
| ||
4 |
| Press OK to add the command to the measurement program. | |
Note
In the top-left corner of the Construction screen, there is an icon that shows the selected feature.
Available Features |
|---|
Bore |
Boss |
Corner Inside |
Corner Outside |
Point |
Sphere |
Constructed Circle |
Constructed Point |
