Measurement Path

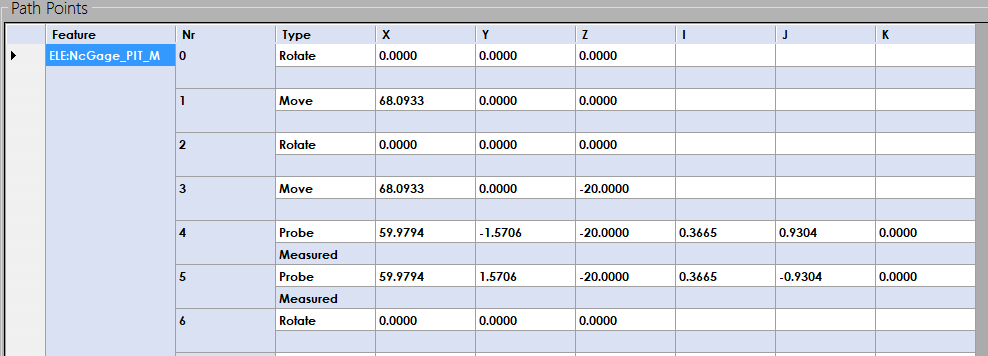

An example of a populated measurement path data table is shown below.
 |
The measurement path data table includes:
The name of the feature that contains the path item (from the software used to generate the path)
The number of the path item
Individual path items can have these types:
Path Item Types | |
|---|---|
Type | Description |
Move | Moves the machine to the coordinate: (X, Y, Z) |
Rotate | Rotates the rotary axes of the machine to the positions: (A, B, C) |
Probe | Probes the point (X, Y, Z) along the surface vector (I, J, K) |
Measured | Displays the measured value for a Probe point after being measured |
