Calibration Report Screen Overview
 |
Calibration Report Screen
Screen Layout |
|---|
Calibration Report |
Information Messages |
Function Menu |
Items on this Screen | |
|---|---|
Screen Area | Description |

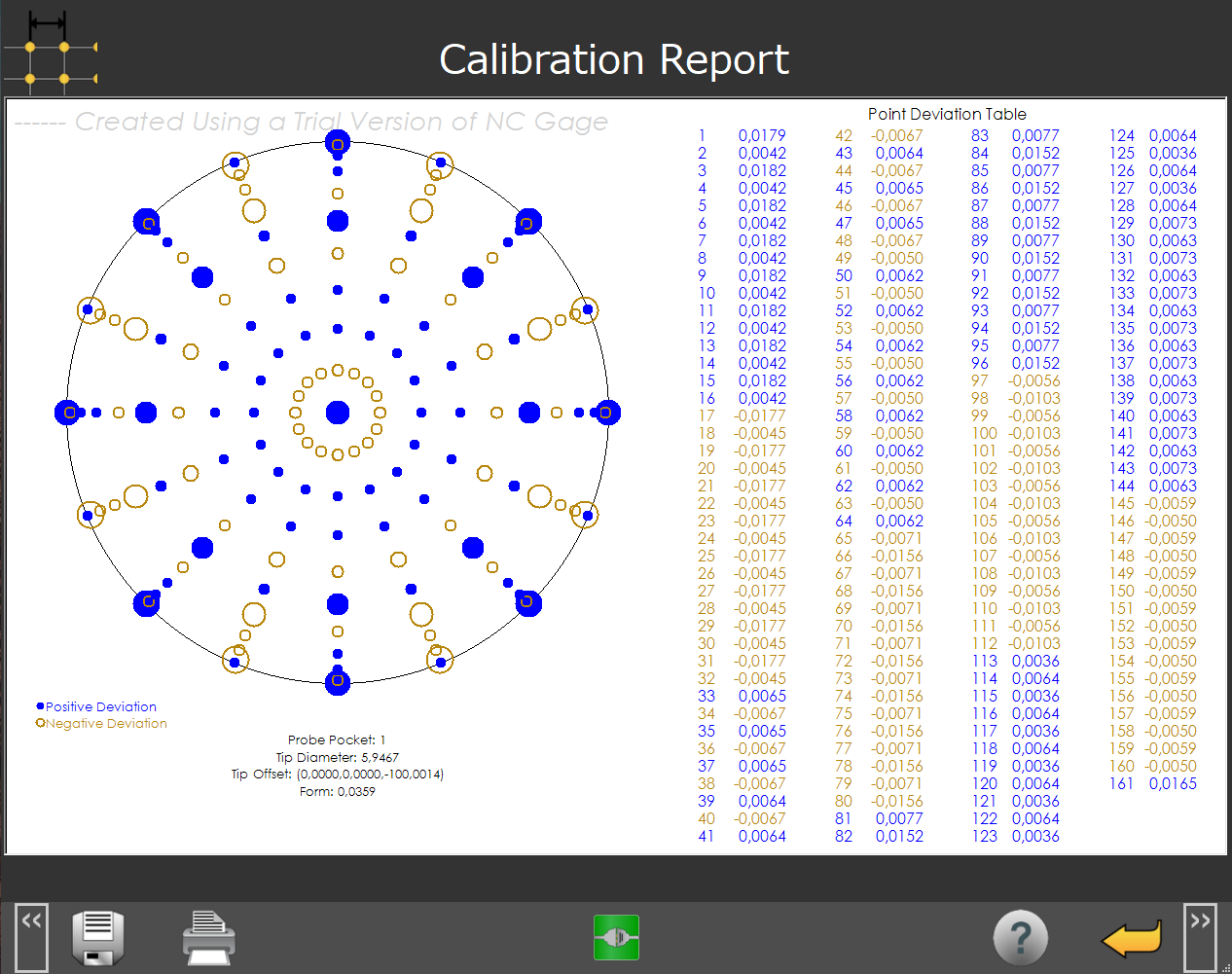

Calibration Report | This area shows the calibration results and every point measured, including a list of all the compensation values. The different size circles and their colors in the graphic depict the relative size and direction of the point deviations:
|
Information Messages | This area shows user instructions, messages, and relevant information. |
Function Menu | This area shows the functions available for the current screen. |
