2023.1 HxGN NC Server with NC Gage

1

Position the probe next to the first point as shown in the diagram on the right, and then press the Read Position button.

2

If you need to correct the position, press the Remove Last Position button to cancel the previously read location, then repeat the previous step.

3

Position the probe next to the second point on the same side as shown in the diagram on the right, and then press Read Position button.

4

Position the probe next to the point on the opposite side as shown in the diagram on the right, and then press Read Position button.

5

Position the probe at a safe position and press the Execute button.

Start the monitor macro on the machine.

NC Gage takes three points starting with the first point on the first side and ending with the point on the second side to locate the web.

NC Gage then measures the three points in the same order and calculates the width and angle of the web.

6

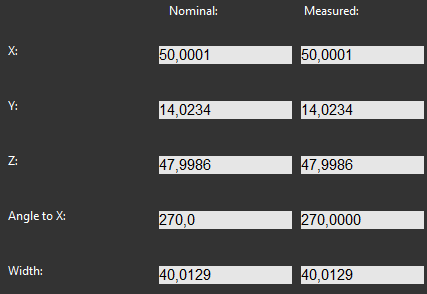

Review the measured values on screen and if necessary, adjust the nominal values.

7

Press OK to add the command to the measurement program.
