How To Construct a Line
Instructions | |||
|---|---|---|---|

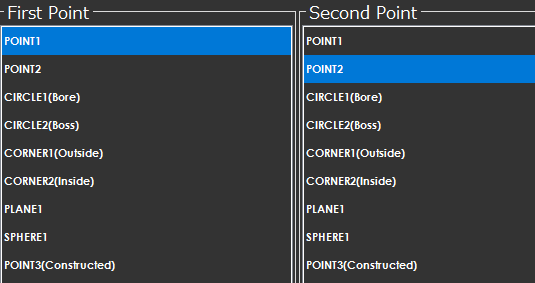

1 | Select the features to use to construct the line.
| ||

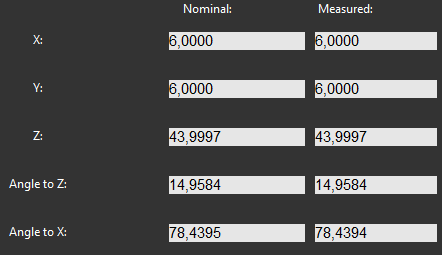

2 | Once the features are selected, review the values on the screen and make any adjustments to the nominal values if necessary.
| ||
3 |
| Press OK to add the command to the measurement program. | |
Note
In the top-left corner of the Construction screen, there is an icon that shows the selected feature.
Available Features |
|---|
Bore |
Boss |
Corner Inside |
Corner Outside |
Point |
Sphere |
Constructed Circle |
Constructed Point |
