How To Evaluate Concentricity
Instructions | |||
|---|---|---|---|

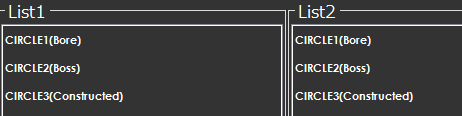

1 | Select the features to evaluate for concentricity.
| ||
2 | Once the features are selected, review the values on the screen and set the desired target values. | ||
3 |
| Press OK to add the command to the measurement program. | |
Note
In the top-left corner of the Construction screen, there is an icon that shows the selected feature.
