Overview
The Measure 3D Curve screen allows you to import a measurement path from an external XMDF file. When NC Gage executes the path, it exports the results to an XMRF file for processing by other software.
XMDF and XMRF files are used to exchange data with the NC Gear Gaging software.

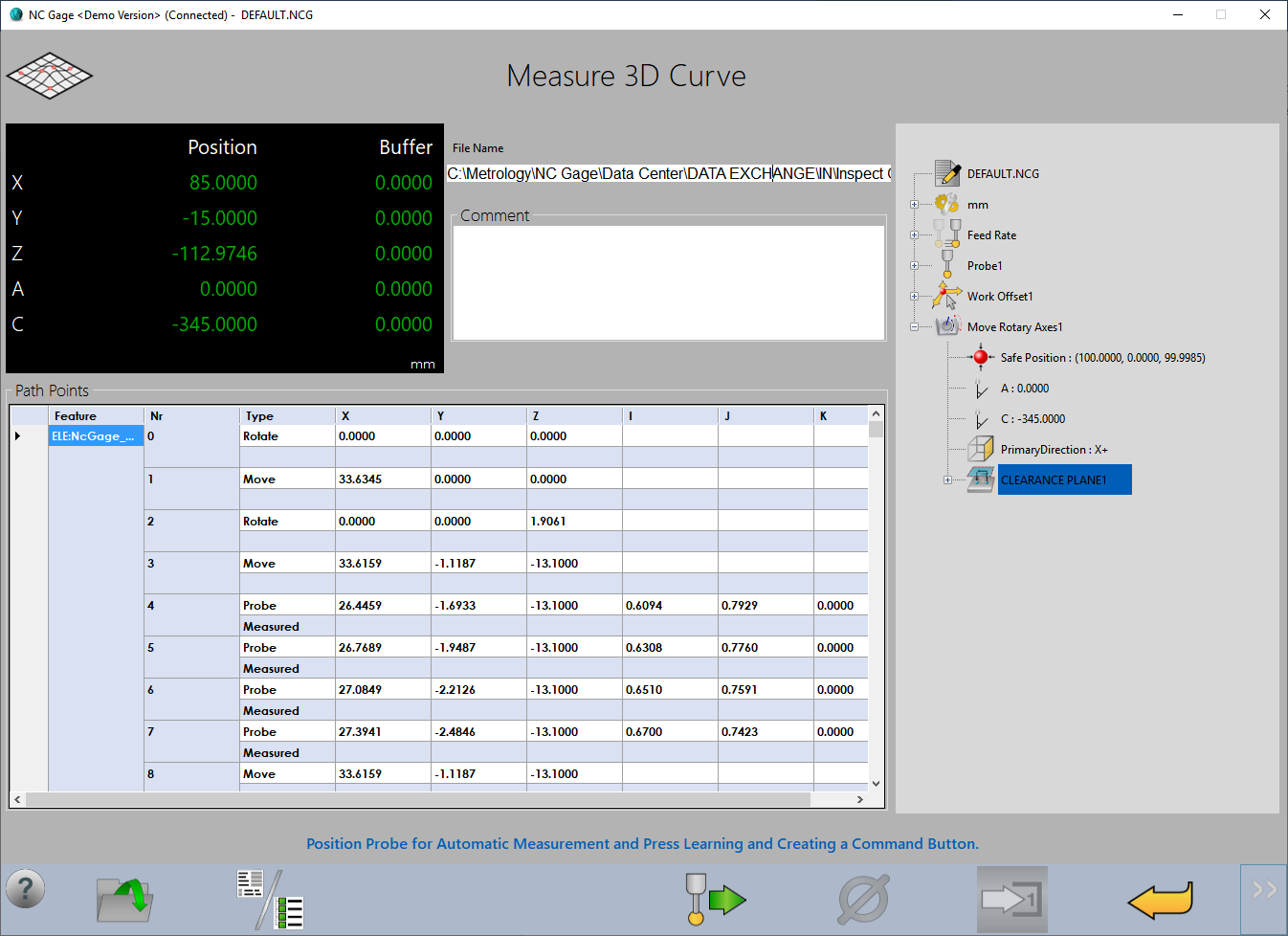

Measure 3D Curve Screen
Screen Layout | ||
|---|---|---|
Counter Display | Source File | Active Gaging Program |
Comment | ||
Measurement Path | ||
Information Messages | ||
Items on this screen | |
|---|---|
Screen Area | Description |
Counter Display | Machine position display |
Source File | File name of source path definition (.XMDF file) |
Active Gaging Program | Shows the current gaging program. |
Comment | Comment text (will be shown on report). |
Measurement Path | List of all moves in path |
Information Messages | User instructions, messages, and information |
Shows the functions available from the current screen. | |
