How To Construct a Point
Instructions | |||
|---|---|---|---|
1 | Select the type of point you want to construct.
| ||
2 |

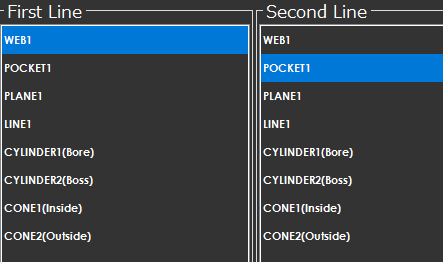

Select the features to use to construct the point. | ||

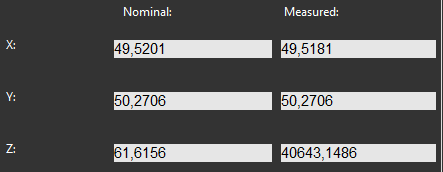

3 | Once you select the features, review the values on the screen and make any adjustments to the nominal values if necessary.
| ||
4 |
| Press OK to add the command to the measurement program. | |
Note
In the top-left corner of the Construction screen, there is an icon that shows the selected feature.
Available Features | |
|---|---|
Point-type features | Line-type features |
Bore | Line |
Boss | Plane |
Corner Inside | |
Corner Outside | Web |
Point | Cylinder (Bore) |
Sphere | Cylinder (Boss) |
Constructed Circle | Cone (Inside) |
Constructed Point | Cone (Outside) |
Constructed Line | |
