Sphere Calibration Screen Overview
 |

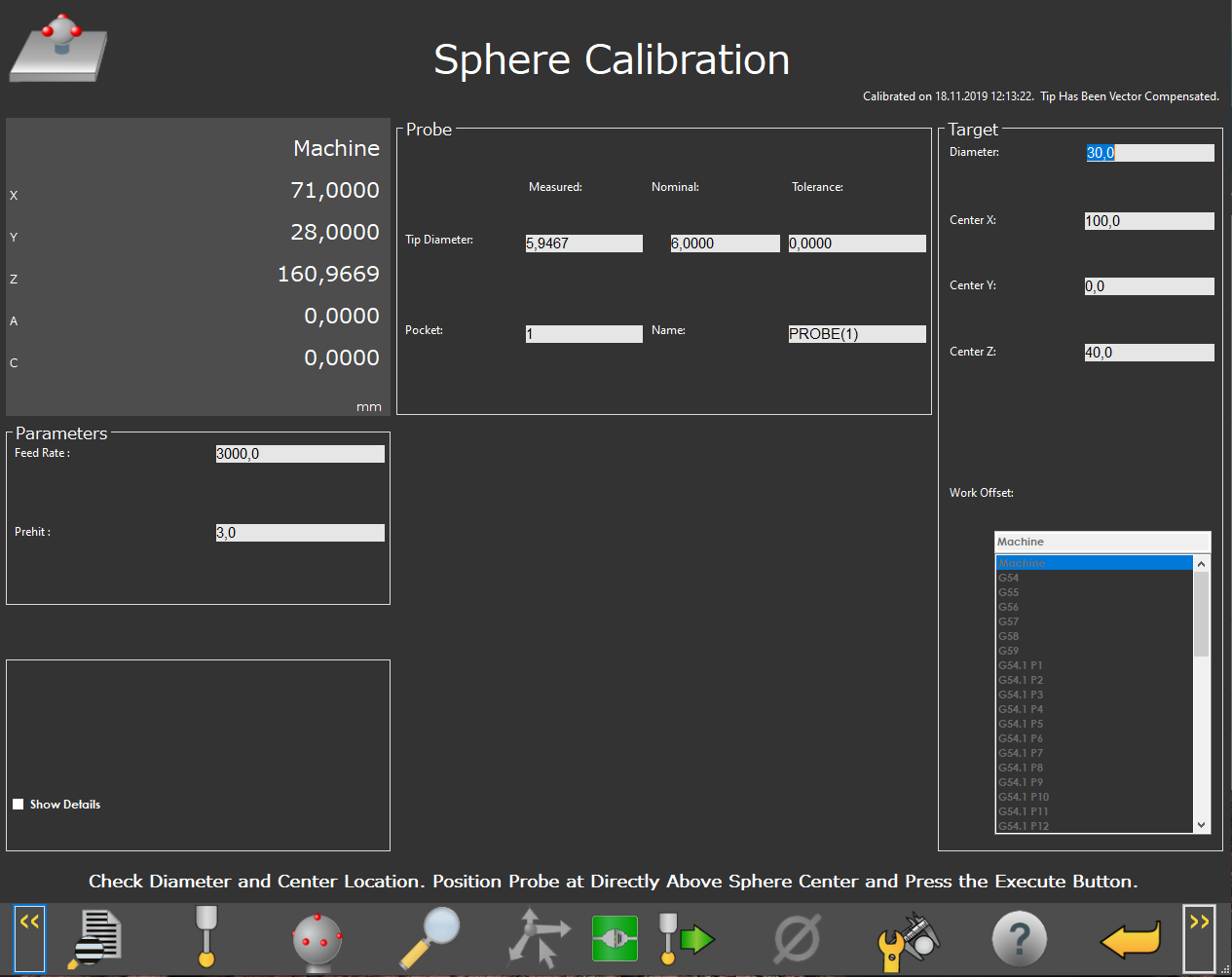

Sphere Calibration Screen
Screen Layout | ||
|---|---|---|
Machine Parameters | Probe Calibration Data | Sphere Location and Data |
Information Messages | ||
Function Menu | ||
Items on this Screen | |
|---|---|
Screen Area | Description |
Machine Parameters | This area provides you with machine location, prehit distance and feed rate information. |
Probe Calibration Data | This area provides you with measurement results, nominal value and tolerance information. |
Sphere Location Data | This area provides you with the sphere coordinates required for calibration. |
Information Messages | This area provides you with user instructions, messages, and other relevant information. |
Function Menu | This area shows the functions available from the current screen. |
