Set Probe Length Screen Overview
 |

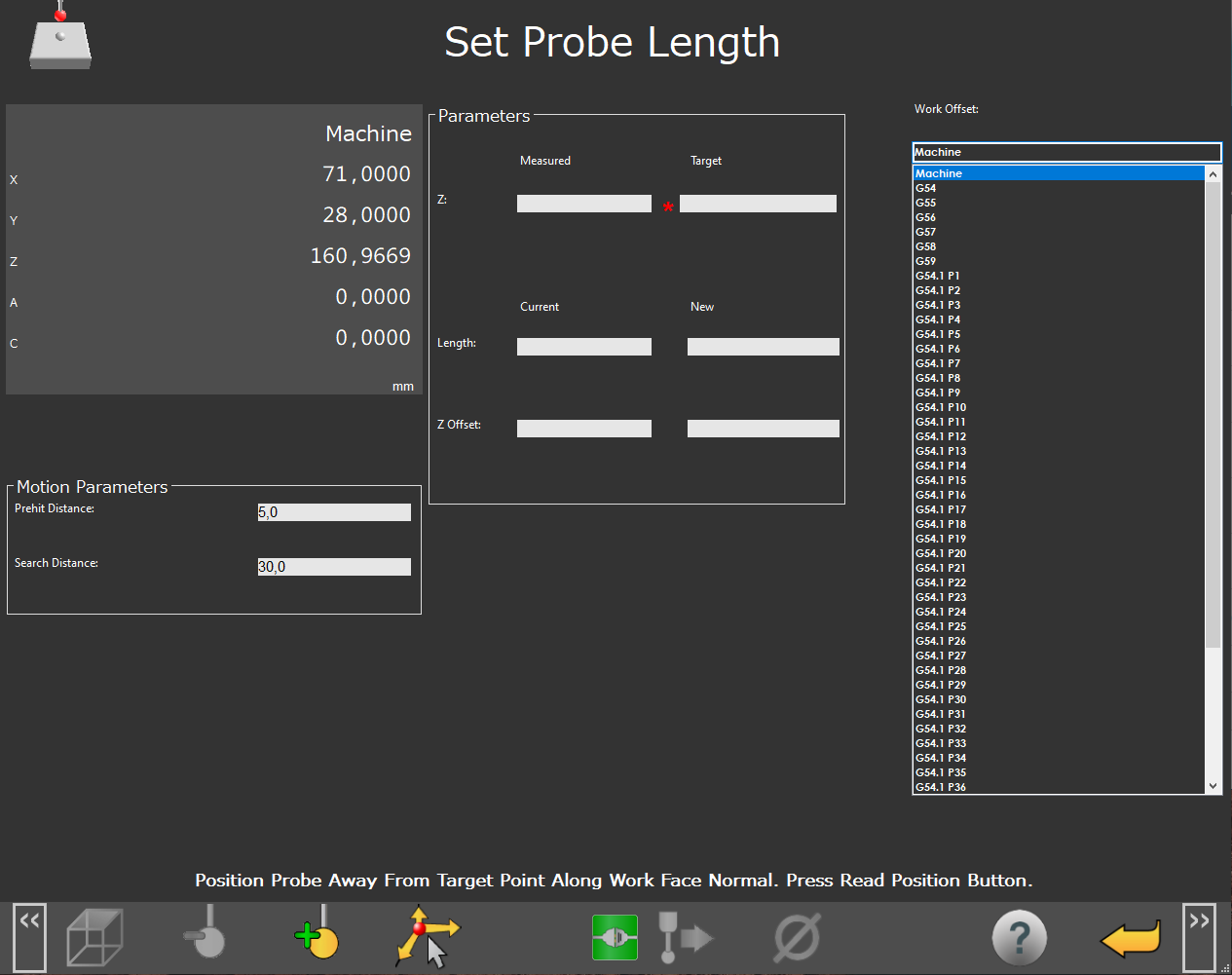

Set Probe Length Screen
Screen Layout | ||
|---|---|---|
Machine Position | Parameters | Work Offset |
Motion Parameters | ||
Information Messages | ||
Function Menu | ||
Items on this Screen | |
|---|---|
Screen Area | Description |
Machine Position | This area shows the coordinates of the machine. |
Motion Parameters | You can use this area to define the prehit and search distances. |
Parameters | This area shows the measured and target values. |
Work Offset | This area shows the possible selections for the work offset with the defined Z value. |
Information Messages | This area shows the user instructions, messages, and relevant information. |
Function Menu | This area shows the functions available for the current screen. |
