Gaging Program Screen Overview
 |

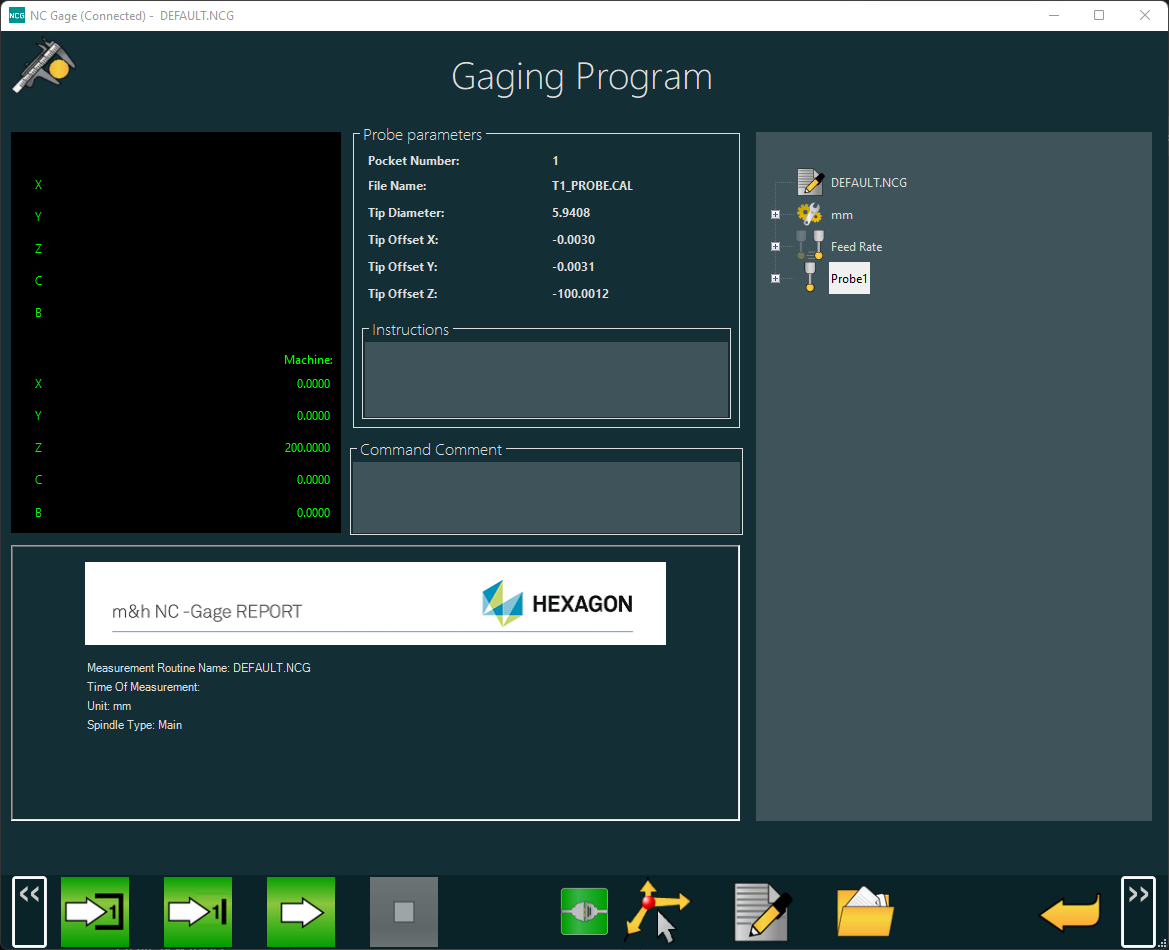

Gaging Program Screen
Screen Layout | ||
|---|---|---|
Counter Display | Selected Program Item Information | Active Gaging Program |
Report | ||
Information Messages | ||
Items on this screen | |
|---|---|
Screen Area | Description |
Counter Display | This area shows the machine position. |
Program Item Information | This area shows the information about the currently selected program item. |
Active Gaging Program Display | This area shows the current gaging program. |
Report | This area shows the report for the gaging program's recorded measurements. |
Information Messages | This area shows user instructions, messages, and relevant information. |
This area shows the functions available for the current screen. | |
