How To Evaluate an Angle
Instructions | |||
|---|---|---|---|
1 | Select the type of angle evaluation you want to construct.
| ||

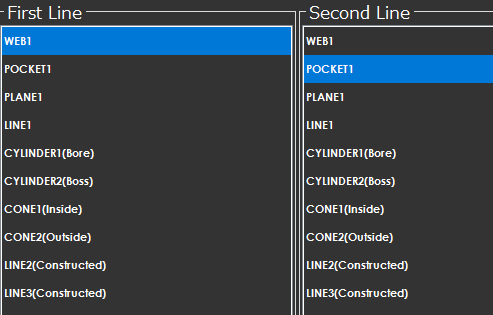

2 | Select the features you want to use to construct the angle.
| ||
3 | Once the features are selected, review the values on screen and make any adjustments to the nominal values if necessary.
| ||
4 |
| Press OK to add the command to the measurement program. | |
Note
In the top-left corner of the Construction screen, there is an icon that shows the selected feature.
Available Features |
|---|
Line |
Plane |
Web |
Cylinder (Bore) |
Cylinder (Boss) |
Cone (Inside) |
Cone (Outside) |
Constructed Line |
