3.6.1 Overview
 |

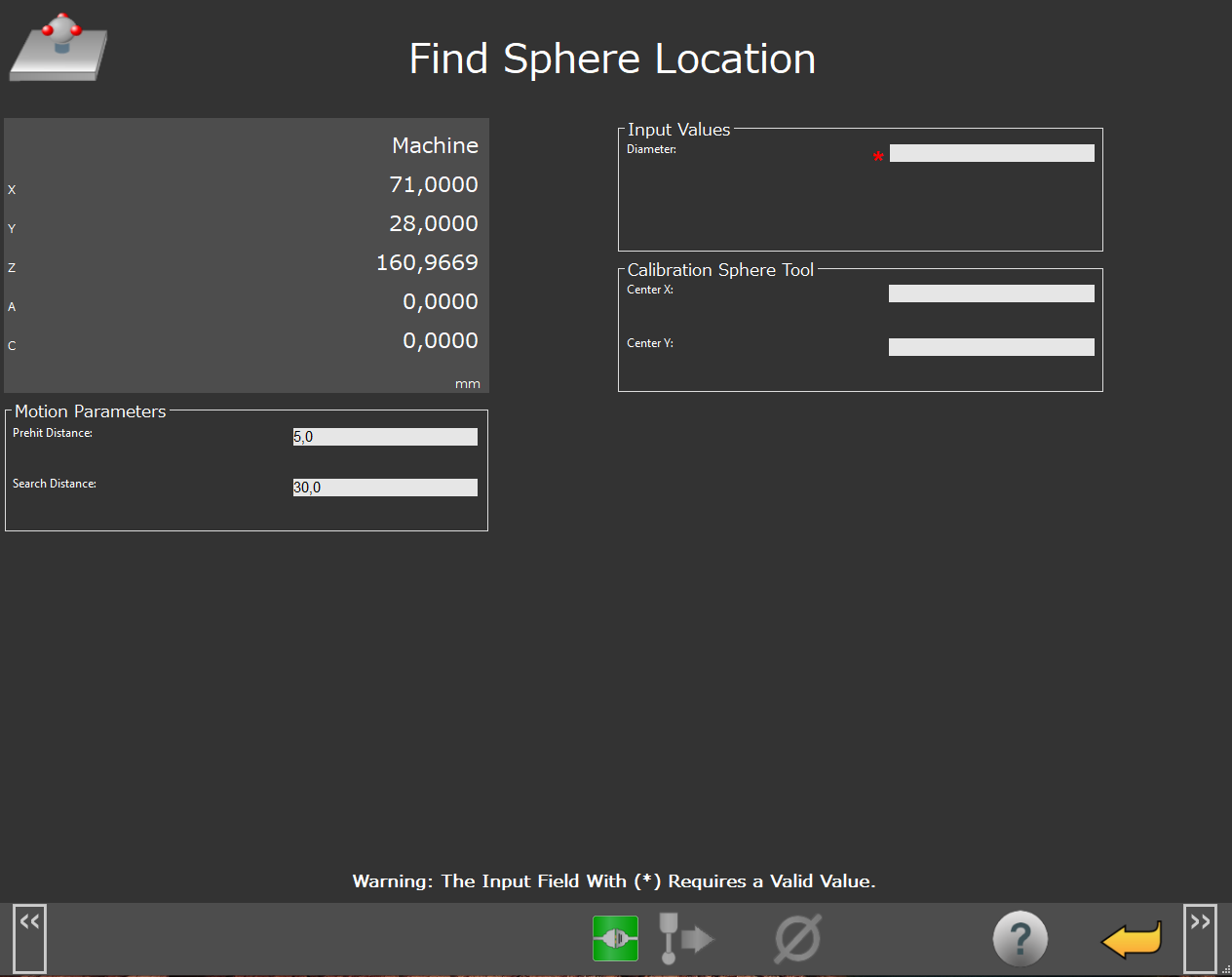

Find Sphere Artifact Screen
Screen Layout | |
|---|---|
Machine Position | Input Values |
Motion Parameters | Calibration Sphere Tool |
Information Messages | |
Function Menu | |
Items on this Screen | |
|---|---|
Screen Area | Description |
Machine Position | This area displays the coordinates of your machine. |
Motion Parameters | This area displays the prehit and search distances. |
Input Values | You can use this area to type in the sphere diameter. |
Calibration Sphere Tool | This area displays the measured results. |
Information Messages | This area displays user instructions, messages, and other relevant information. |
Function Menu | This area displays the functions available for the current screen. |
