Find Sphere Location Screen (Rotary Table) Overview
 |

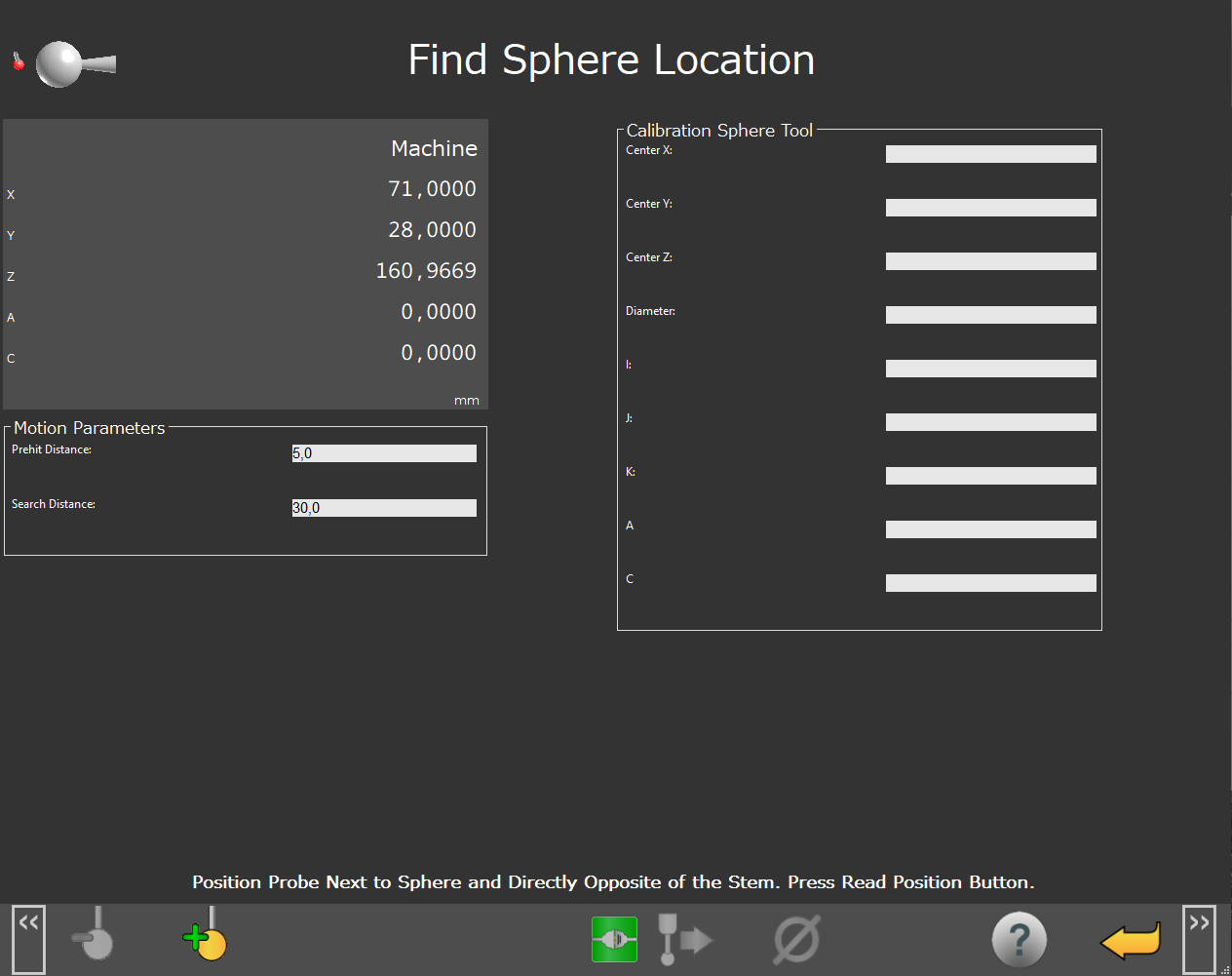

Find Sphere Location Screen
Screen Layout | |
|---|---|
Machine Position | Calibration Sphere Tool |
Motion Parameters | |
Information Messages | |
Function Menu | |
Items on this Screen | |
|---|---|
Screen Area | Description |
Machine Position | This area displays the coordinates of the machine. |
Motion Parameters | You can use this area to set the Feed Rate, Prehit, and Safe Height values. |
Calibration Sphere Tool | This area shows the calibration measurement results. |
Information Messages | This area shows user instructions, messages, and relevant information. |
Function Menu | This area shows the functions available for the current screen. |
