2023.1 HxGN NC Server with NC Gage

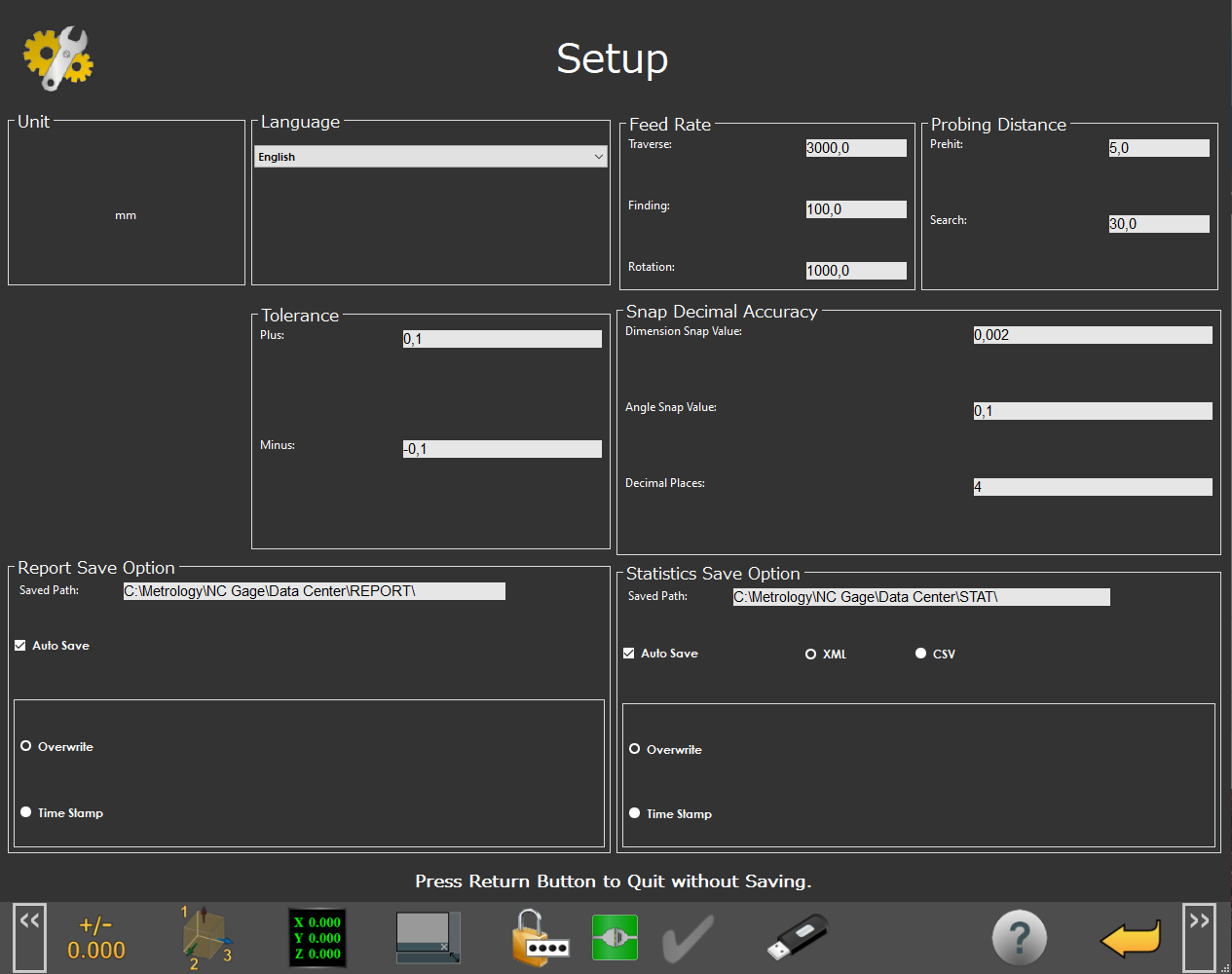

Setup Screen Overview

Setup Screen

Screen Layout

Settings

Note

For details on the available option on the Setup screen, see "Setup Screen Settings".

Information Messages

Function Menu

Note

For details on the Settings screen menu items, see "Settings Menu Items".

Items on this screen

Screen Area

Description

Settings

This area shows the general application settings.

Note

For details on the available option on the Setup screen, see "Setup Screen Settings".

Information Messages

This area shows the user instructions, messages, and relevant information.

Function Menu

This area shows additional application settings.

Note

For details on the Settings screen menu items, see "Settings Menu Items".

In this section:
