Ring Calibration Screen Overview
Ring Calibration Screen

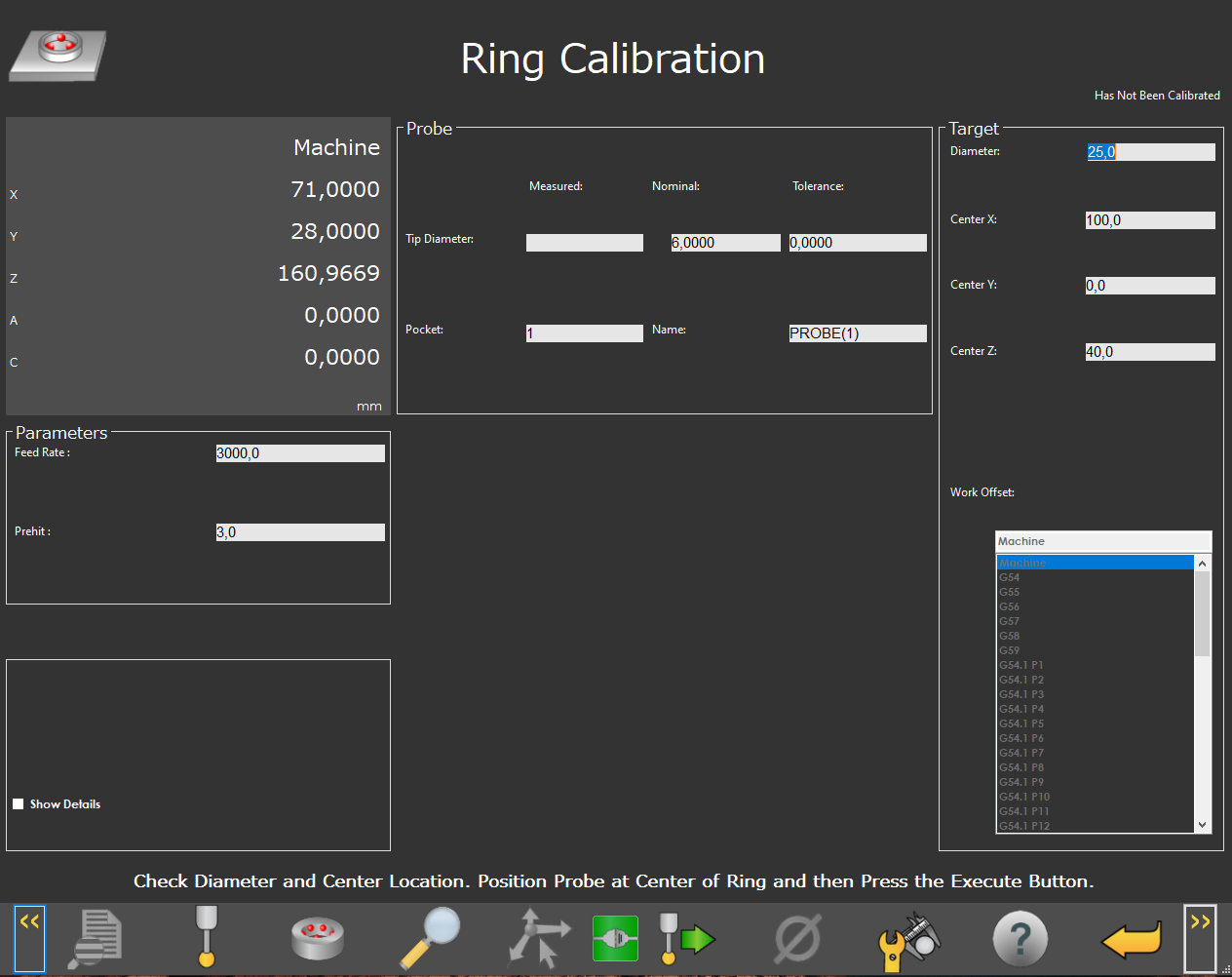

Screen Layout | ||
|---|---|---|
Machine Parameters | Probe Calibration Data | Ring Location and Data |
Information Messages | ||
Function Menu | ||
Items on this Screen | |
|---|---|
Screen Area | Description |
Machine Parameters | This area shows the machine location, prehit distance and feed rate. |
Probe Calibration Data | This area shows the measurement results, nominal and tolerance values. |
Ring Location Data | This area shows the ring coordinates for the calibration. The Z coordinate is the top surface of the ring. |
Information Messages | This area shows the user instructions, messages, and other relevant information. |
Function Menu | This area shows the functions available for the current screen. |
